Tyvok Spider X1S Large-Format Laser Engraver & Cutter
- Extendable X-Axis & Y-Axis: 800*2000mm (31.5" x 78.7")
- Pre-Integrated Adjustable Air Assist
- Easy-to-Carry, Space-Saving
- Assembly-Free, DIY Structure
Package Includes:
- Spider X1S Machine with 10W Laser Head
- 800 * 2000 Working Format
- Flexible Honeycomb Working Plate
- Air Assist
- 8 * Risers
Safe & secure checkout
BUY NOW,PAY LATER
Buy a Tyvok laser engraver now and enjoy flexible installment options for easy payments and a high-quality engraving experience!"
Pioneer In Lightweight Large-Format Cutting & Engraving
Spider X1S sparks a new light for engraving and cutting ideas. The engraving format can reach up to 800mm * 2000mm in length. It not only supports standard mode cutting but also offers quick extension cutting. The machine is capable of handling large-format engraving and cutting projects. The extendable XY Axis ensures that your creativity is no longer limited by format, allowing you to unleash imagination and creativity.
800*2000MM Extention Size
Create More Multilayered Painting
400*2000MM Extention Size
Multi-layered Painting Finish at Once
Roller Mode
Work out of the Frame
Tyvok Spider X1S Large-Format Laser Engraver & Cutter
Standard Size:400*400 Expand Up to 800*2000MM
Click the "Hard Home " button back to home point, Free your hand & Save your time
Pair text with an image to focus on your chosen image

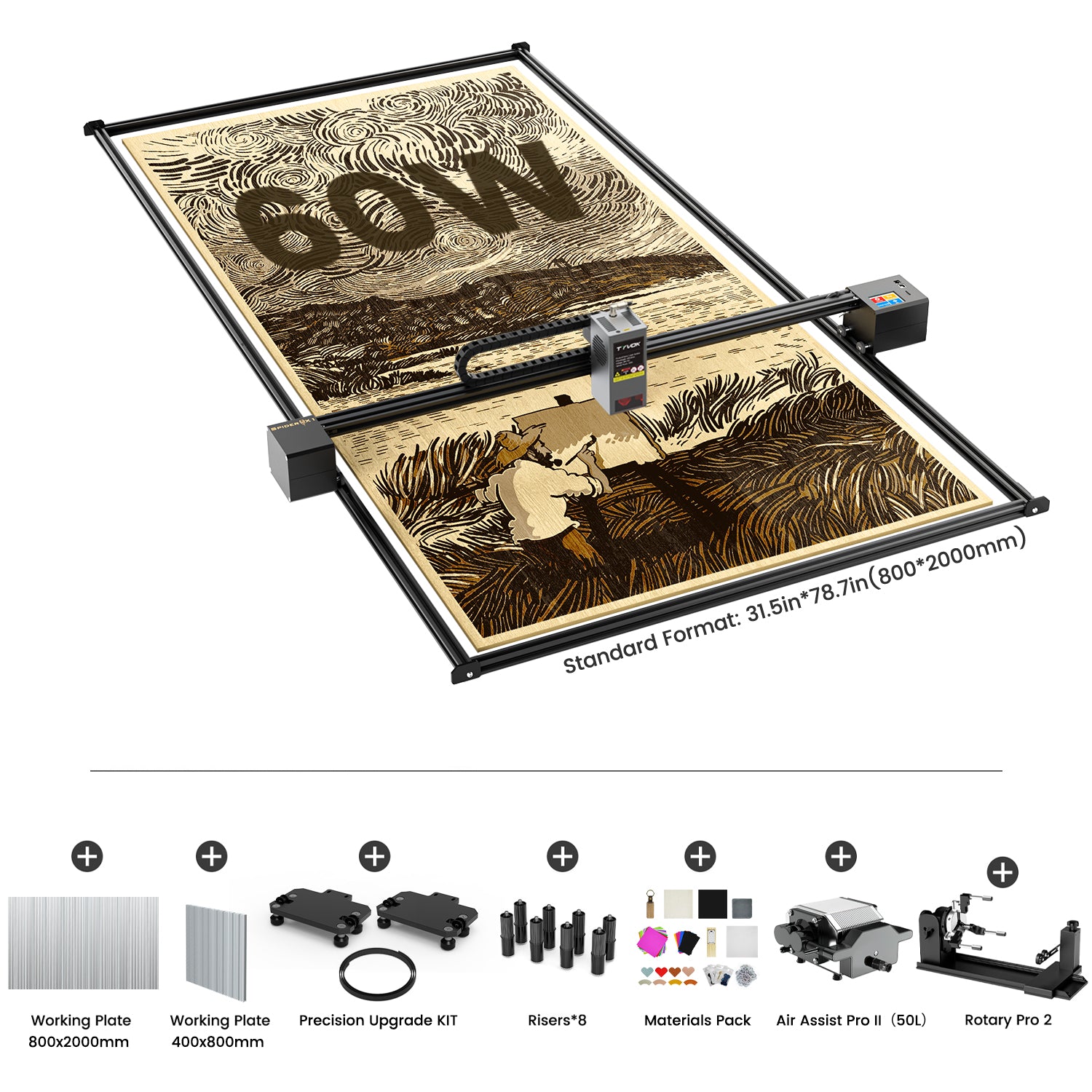

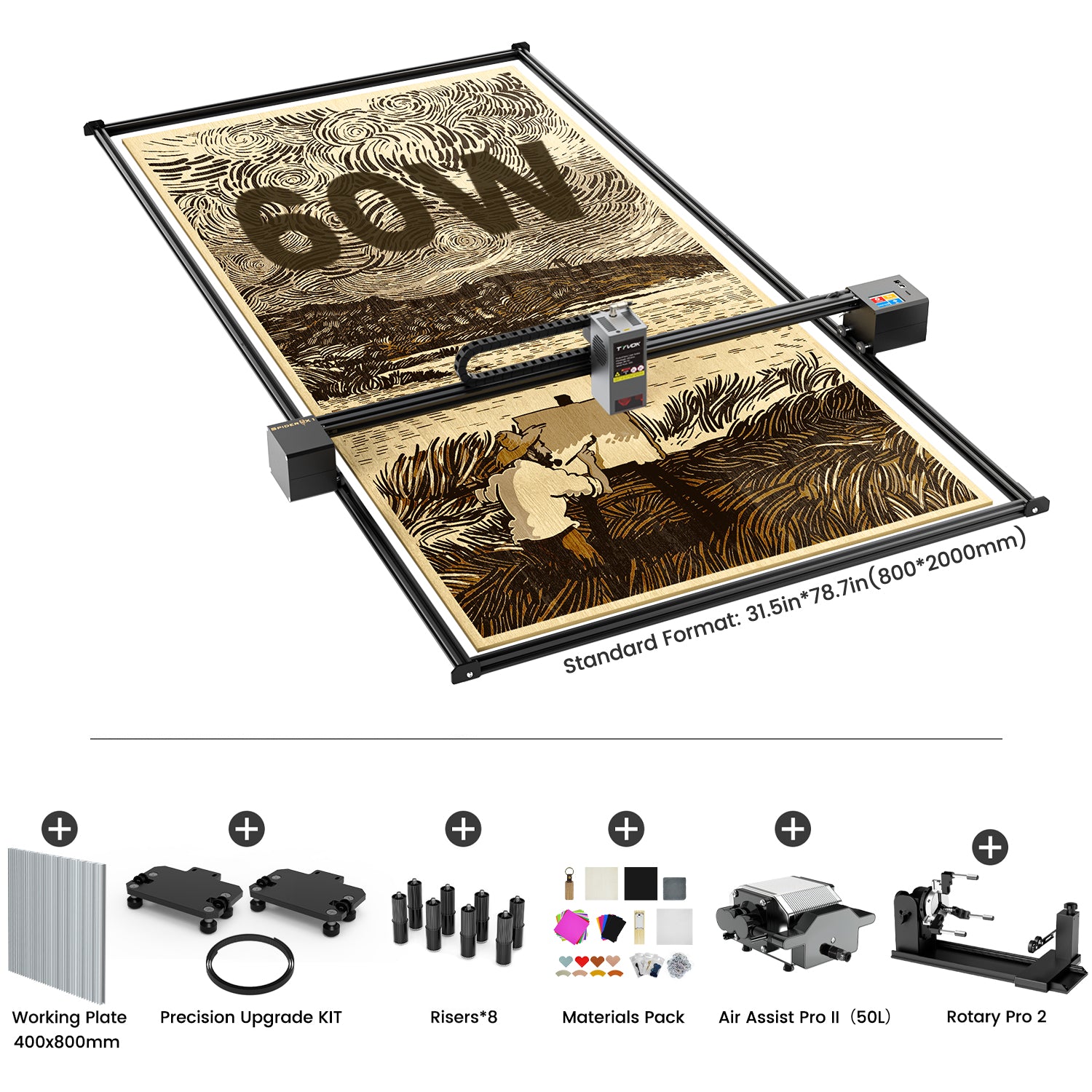

X1S Package List
Works from Users
Spider X1S 10W |
Spider X1S 20W |
|
---|---|---|
Power of the Laser Module | 10-12W | 20-24W |
Laser Electric Power | 120W | 120W |
Laser Wavelength | 455±5nm | 455±5nm |
Laser Source | Diode Laser | Diode Laser |
Engraving Area (Standard Mode) | Engraving: 400×2000mm Cutting: 400×400mm |
Engraving: 400×2000mm Cutting: 400×400mm |
Engraving Area (Extension Mode) | Engraving: 800×2000mm Cutting: Up to 800×2000mm |
Engraving: 800×2000mm Cutting: Up to 800×2000mm |
Laser Spot Size | 0.08 x 0.06mm | 0.08 x 0.06mm |
Maximum Speed | 24,800mm/min | 24,800mm/min |
Movement Speed | 6,000mm/min | 6,000mm/min |
Support Air Assist Interface | ✔ | ✔ |
Support Software | LightBurn, LaserGRBL | LightBurn, LaserGRBL |
Support Operation Mode | TF Card, Web, Engrave Software | TF Card, Web, Engrave Software |
Support Wi-Fi | ✔ | ✔ |
Support Material | Cardboard, Wood, Bamboo, Rubber, Acrylic, Fabric, Plastic, Metal | Cardboard, Wood, Bamboo, Rubber, Acrylic, Fabric, Plastic, Metal |
Support File Formats | SVG, PNG, JPG, BMP, DXF | SVG, PNG, JPG, BMP, DXF |
Offline Work | ✔ | ✔ |
Input Voltage | 100-240V, 50-60Hz | 100-240V, 50-60Hz |
Output Voltage | DC 24V, 5A | DC 24V, 5A |
Specifications | Spider X1 10W |
Power of the Laser Module | 10-12W |
Laser Electric Power | 120W |
Laser Wavelength | 455±5nm |
Laser Source | Diode Laser |
Engraving Area (Standard Mode) | Engraving: 400×2000mm Cutting: 400×400mm |
Engraving Area (Extension Mode) | Engraving: 800×2000mm Cutting: Up to 800×2000mm |
Laser Spot Size | 0.08 x 0.06mm |
Maximum Speed | 24,800mm/min |
Movement Speed | 6,000mm/min |
Support Air Assist Interface | ✔ |
Support Software | LightBurn, LaserGRBL |
Support Operation Mode | Mobile App, TF Card, Web, Engrave Software |
Support Wi-Fi | ✔ |
Support Material | Cardboard, Wood, Bamboo, Rubber, Acrylic, Fabric, Plastic, Metal |
Support File Formats | SVG, PNG, JPG, BMP, DXF |
Offline Work | ✔ |
Input Voltage | 100-240V, 50-60Hz |
Output Voltage | DC 24V, 5A |
Specifications | Spider X1 20W |
Power of the Laser Module | 20-24W |
Laser Electric Power | 120W |
Laser Wavelength | 455±5nm |
Laser Source | Diode Laser |
Engraving Area (Standard Mode) | Engraving: 400×2000mm Cutting: 400×400mm |
Engraving Area (Extension Mode) | Engraving: 800×2000mm Cutting: Up to 800×2000mm |
Laser Spot Size | 0.08 x 0.06mm |
Maximum Speed | 24,800mm/min |
Movement Speed | 6,000mm/min |
Support Air Assist Interface | ✔ |
Support Software | LightBurn, LaserGRBL |
Support Operation Mode | Mobile App, TF Card, Web, Engrave Software |
Support Wi-Fi | ✔ |
Support Material | Cardboard, Wood, Bamboo, Rubber, Acrylic, Fabric, Plastic, Metal |
Support File Formats | SVG, PNG, JPG, BMP, DXF |
Offline Work | ✔ |
Input Voltage | 100-240V, 50-60Hz |
Output Voltage | DC 24V, 5A |
Specifications | Spider X1S 20W |
Power of the Laser Module | 20-24W |
Laser Electric Power | 120W |
Laser Wavelength | 455±5nm |
Laser Source | Diode Laser |
Engraving Area (Standard Mode) | Engraving: 400×2000mm Cutting: 400×400mm |
Engraving Area (Extension Mode) | Engraving: 800×2000mm Cutting: Up to 800×2000mm |
Laser Spot Size | 0.08 x 0.06mm |
Maximum Speed | 24,800mm/min |
Movement Speed | 6,000mm/min |
Support Air Assist Interface | ✔ |
Support Software | LightBurn, LaserGRBL |
Support Operation Mode | Mobile App, TF Card, Web, Engrave Software |
Support Wi-Fi | ✔ |
Support Material | Cardboard, Wood, Bamboo, Rubber, Acrylic, Fabric, Plastic, Metal |
Support File Formats | SVG, PNG, JPG, BMP, DXF |
Offline Work | ✔ |
Input Voltage | 100-240V, 50-60Hz |
Output Voltage | DC 24V, 5A |
Frequently Asked Questions
You can find answers to some frequently asked questions here, and if not, you can contact our service team.
What materials can Spider X1S cut and engrave?
Spider X1S can engrave on wood, bamboo, acrylic, leather, tile, etc. And metal with coating like stainless steel, aluminum, etc..
Does Spider X1S need assembly?
Spider X1 is a DIY machine, no need for assembly when you operate it in standard mode, but it needs to be assembled if you want to get extension for large format.
What are the differences between the 10W and the 20W laser in cutting capabilities?
10W can cut the basswood below 5mm at one pass, 20W can cut the basswood below 8mm at one pass.
