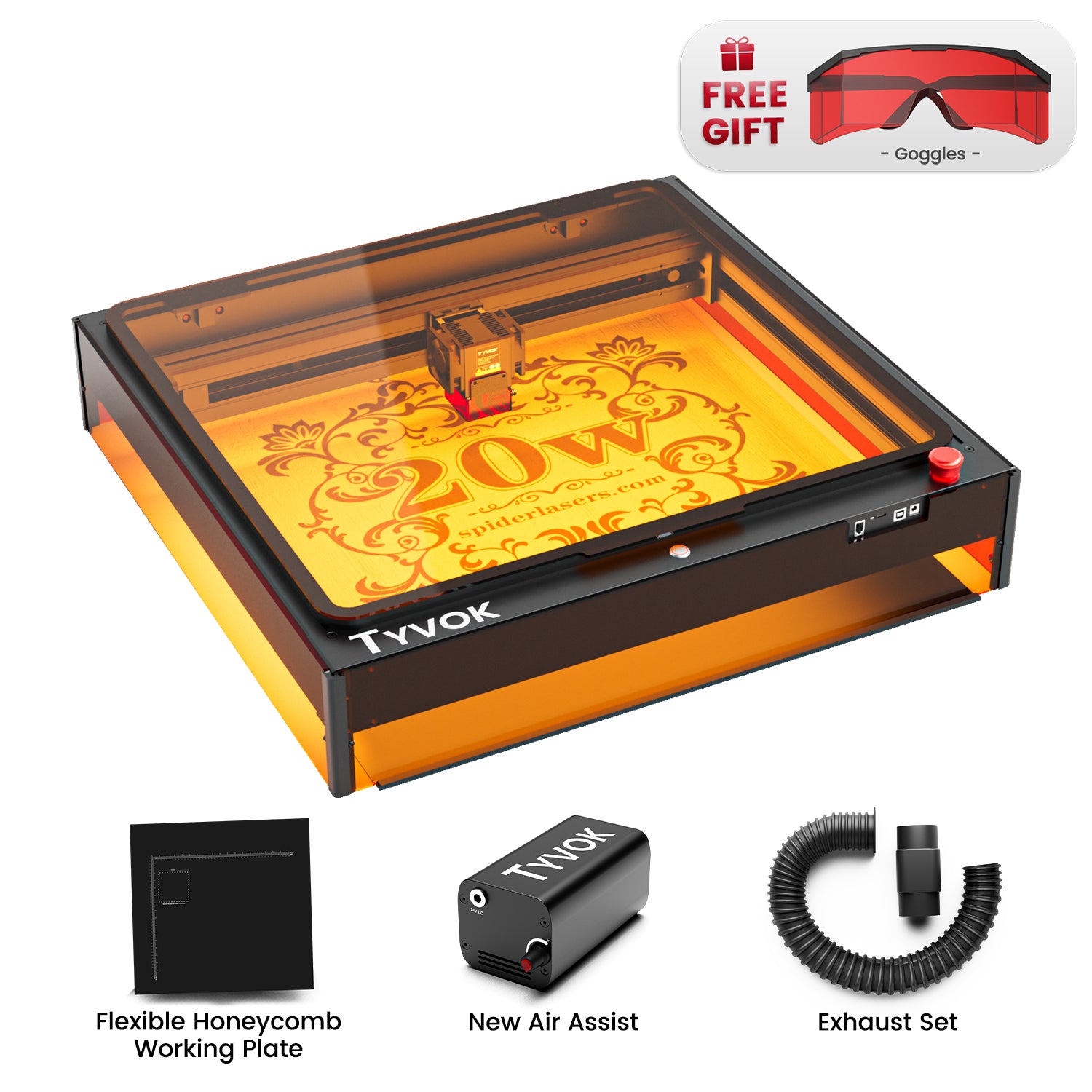

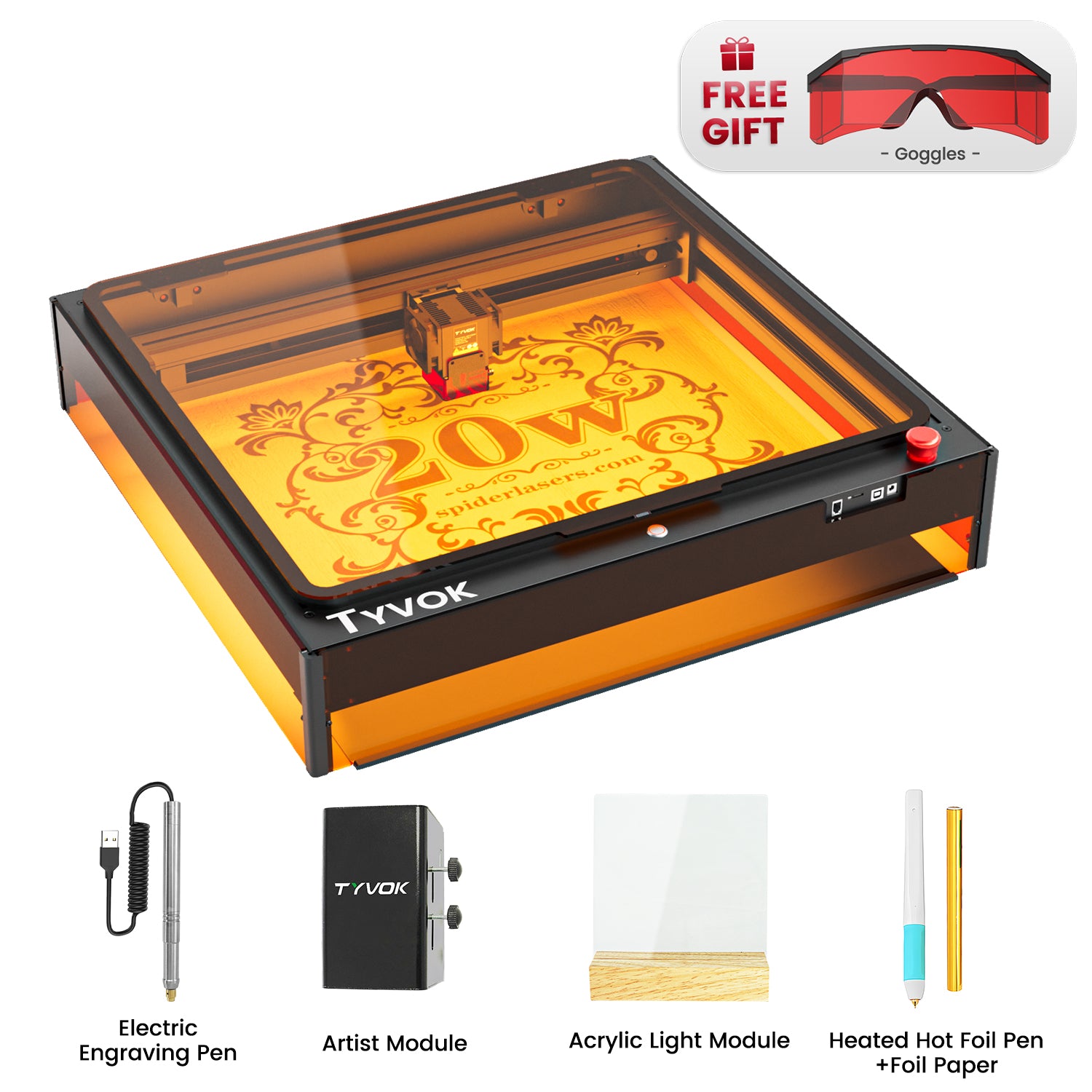

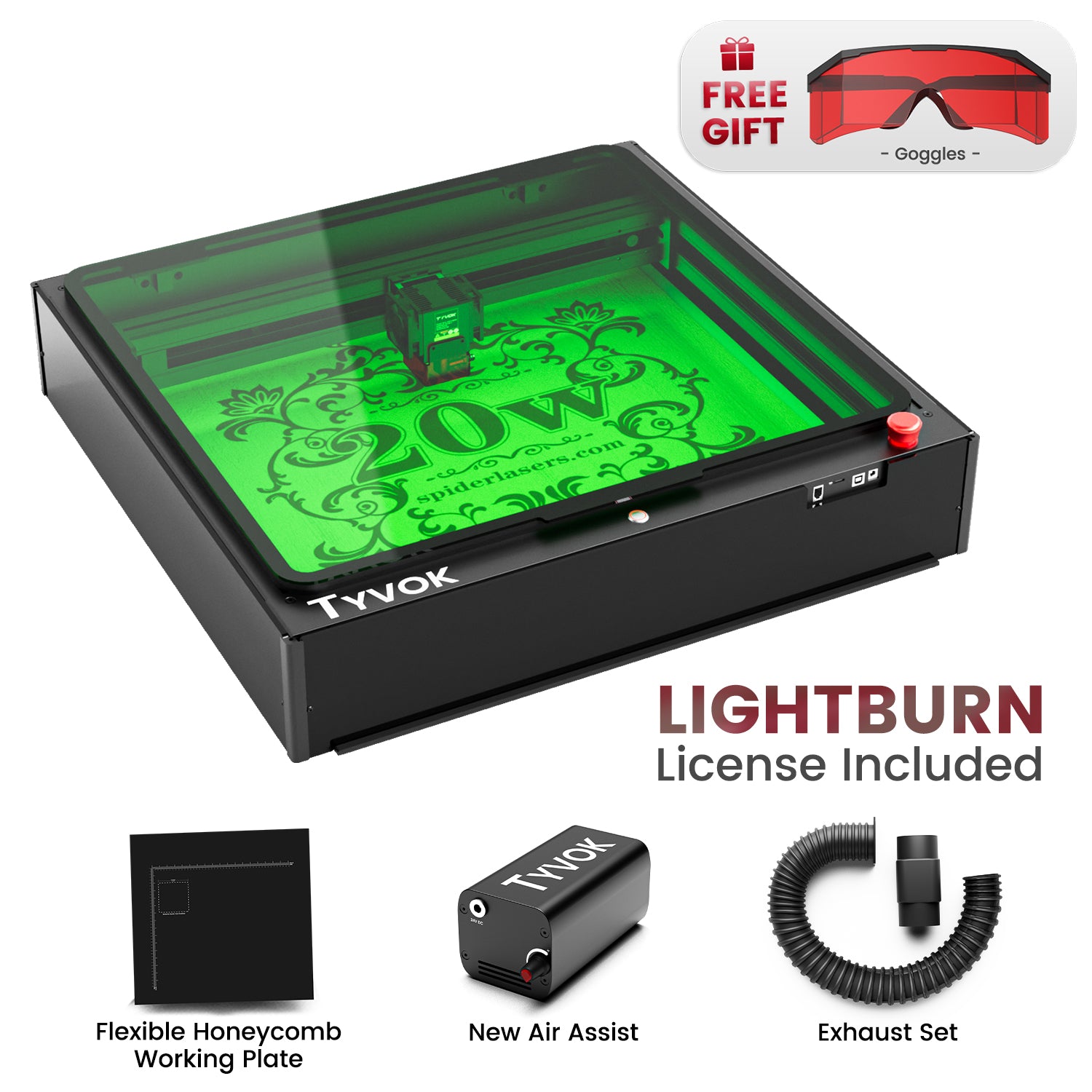

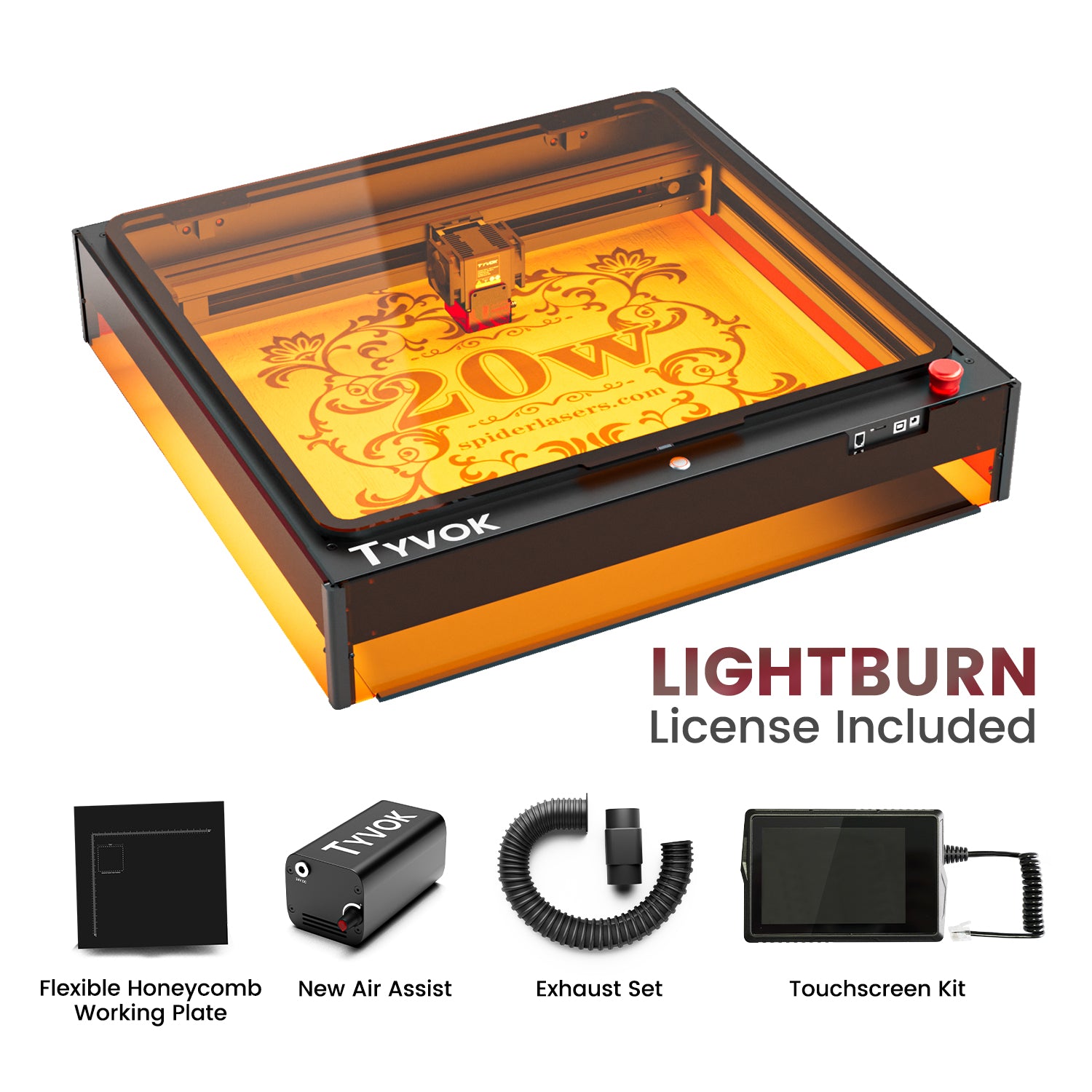

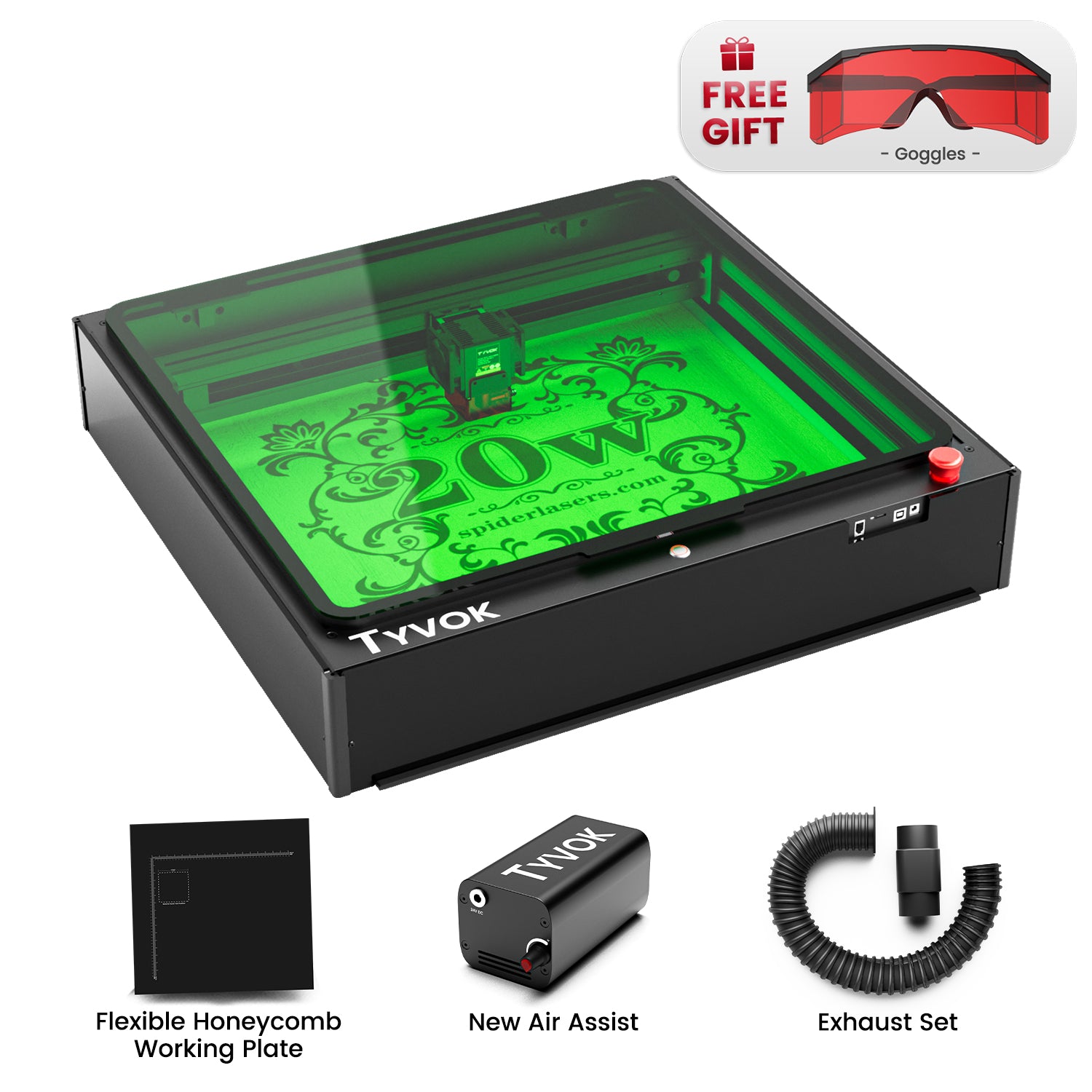

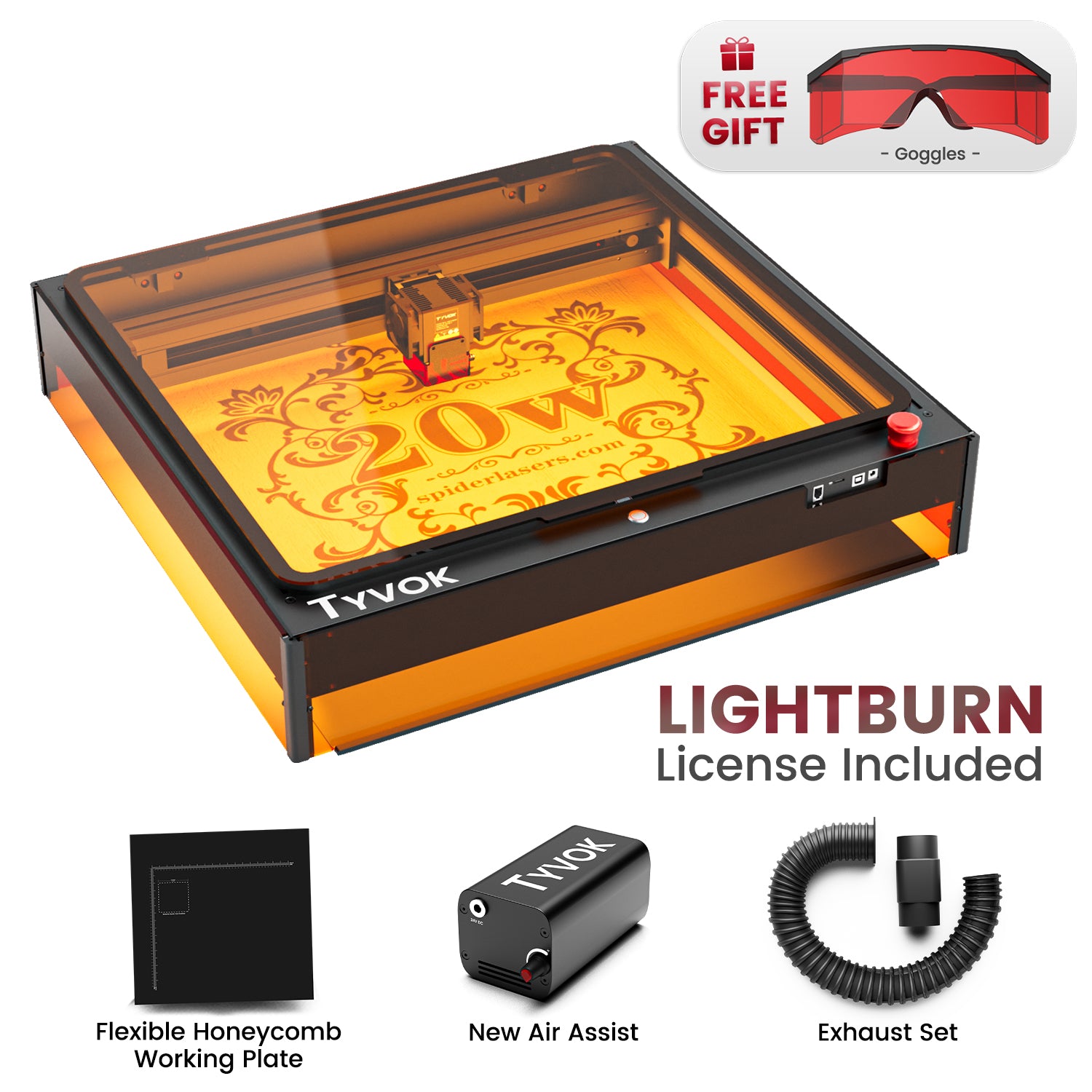

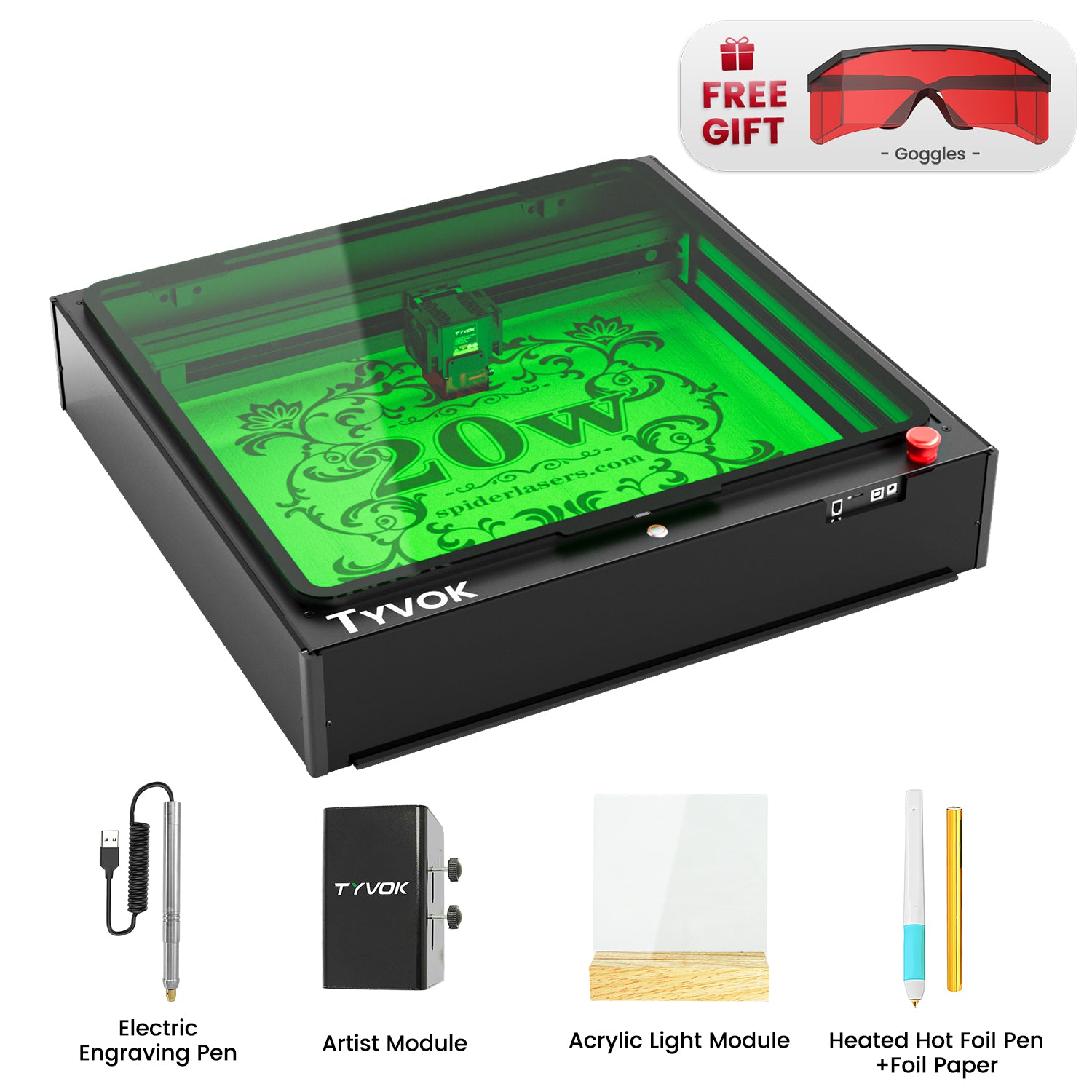

Tyvok Spider X1C Geschlossener Lasergravierer & -schneider

K1 100W CO₂ Laser — Official Pre-Order Is Live!Order now on our official website and enjoy exclusive launch pricing

📩 Need help? Contact our service team: cs@tyvok.com

0

Unlock Your Creative Potential with Tyvok

Educational Use

DIY Magic

Gift Packaging

Banding

Holiday Gift

Educational Use

DIY Magic

Gift Packaging

Banding

Holiday Gift

Highlights At A Glance

Tyvok Spider Lasers

Unbox to use, set free of your hands. A laser engraver which integrates smoke extractor and air assist at the same time. Your good assistant of your first laser machine.

Safty is a Priority

Tyvok values safety as the first priority when delelop a laser machine. The features of eye protection, the color acrylic panel, the emergency stop switch, and the tilt sensor for stable operation. The system's exhaust ventilation and optimized fume extraction maintain a safe engraving environment, ensuring robust user safety.

Eye Friendly

Utlizing a laser protective enclosure and an acrylic comprehensive shielding system for the entire apparatus, the laser beam has been significantly reduced. This configuration establishes a category of laser apparatus that can be confidently employed, prioritizing user safety without compromising functionality.

Powerful Laser Head

20W Laser Module
Material: Basswood Plywood
Thickness:10mm(one pass)
Speed:3mm/s
Power:100%
Air-assisted opening
Exhaust system activated

Works from Users

7.jpg__PID:5fc8b83a-dc01-49b8-903f-9d5a41164295

Multiple ways to operate

Tyvok Spider X1C Enclosed Laser Engraver & Cutter is suitable for running in a variety of ways, you can use it according to your needs. And if not, you can contact our service team.

Specifications
	Spider X1C 20W
Power of the Laser Module	20W
Laser Electric Power	120W
Laser Wavelength	455±5nm
Laser Source	Diode Laser
Working Area	400×400mm
Laser Spot Size	0.08 x 0.06mm
Maximum Speed	24,800mm/min
Movement Speed	6,000mm/min
Support Air Assist Interface	✔
Support Software	LightBurn, LaserGRBL
Support Operation Mode	TF Card, Web, Engrave Software
Support Wi-Fi	✔
Support Material	Cardboard, Wood, Bamboo, Rubber, Acrylic, Fabric, Plastic, Metal
Support File Formats	SVG, PNG, JPG, BMP, DXF
Offline Work	✔
Input Voltage	100-240V, 50-60Hz
Output Voltage	DC 24V, 5A

Frequently Asked Questions

You can find answers to some frequently asked questions here, and if not, you can contact our service team.

1. What kind of laser engraver is the Tyvok Spider X1C?

In order to allow users to better use the frame laser engraving machine, and can be pre-installed, the user does not need to install, and at the same time for laser protection and smoke exhaustion, so that users can use the laser engraving machine more assured.

2. Tyvok X1C Estimated Sales Time and Shipping Time:

At present, the products are very mature and are produced and sold in large quantities.

3. What are the characteristics of the X1C laser engraving machine compared with the current engraving machine?

X1C aims to provide users with a better user experience, and currently has the following features:
1) The overall product is pre-installed, and users no longer need to install it by themselves, that is, they can use it when they are turned on
2) It will take into account the usage habits of different user groups for the frame, and users can use the fully enclosed mode to achieve safer laser engraving, or they can directly choose open to achieve more flexible operation.
3) The whole series is equipped with air assist and platform plate as standard, so that users can use it very conveniently, especially in cutting mode, it is very convenient to use the tunable air assist.
4) Professionally designed wiring system to ensure that all cables have been concealed wiring, the cables are not exposed, concise, safe, and at the same time avoid the impact of dust generated by cutting on the cables and belts, and easy to clean.
5) Adopt exhaust design, which can eliminate the smoke generated by laser engraving and ensure that the engraving and cutting work scene is clean
6) Users can choose the open mode or the shell with different colors according to their needs, which is convenient for users to choose

4. What connection methods and software does X1C support?

X1C supports WIFI unlimited connection, also supports wired connection LightBurn, and GRBLLaser, and can also be used directly by inserting a card, etc., and can also support APP for simple engraving

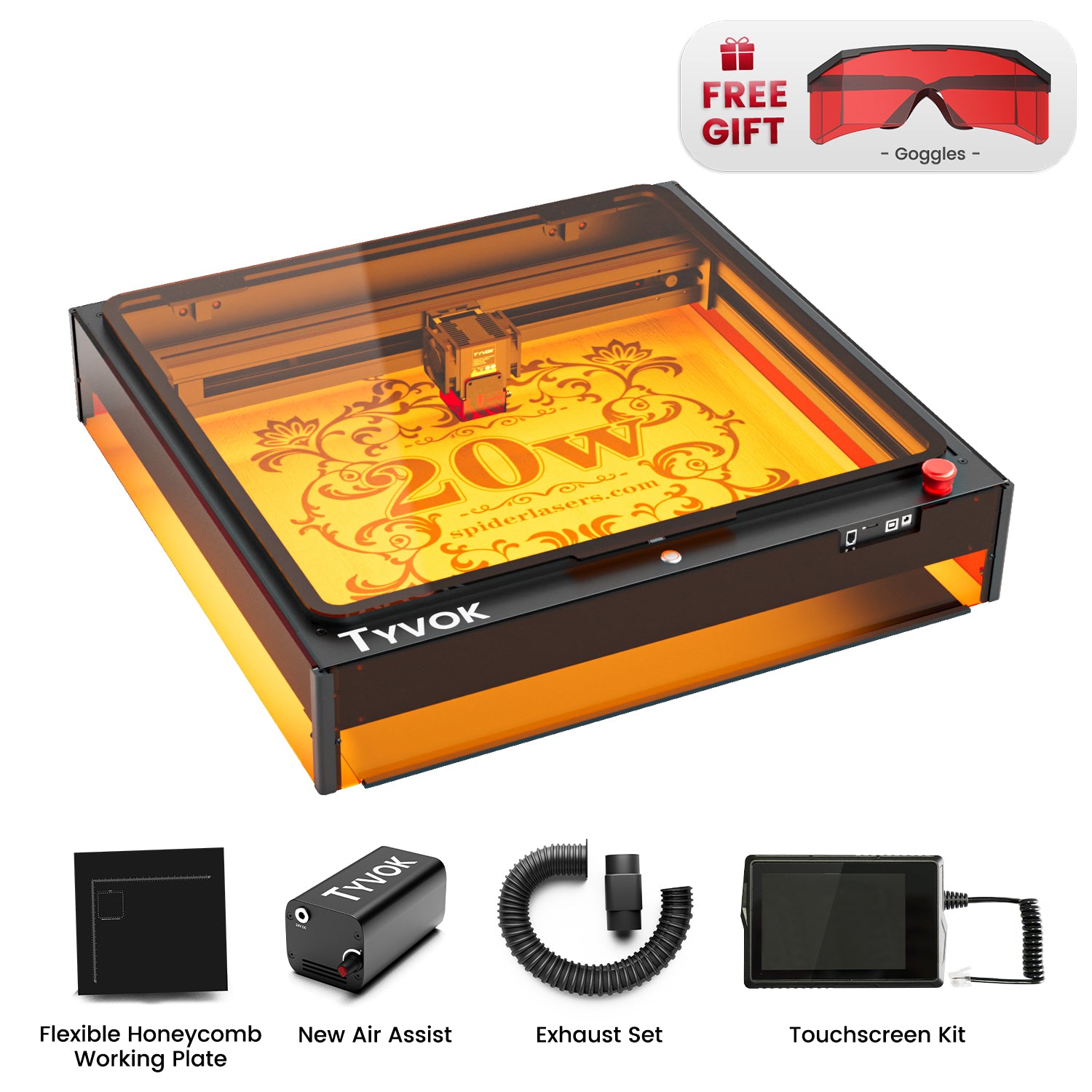

5. Does the X1C come with a touchscreen, and can it be externally connected?

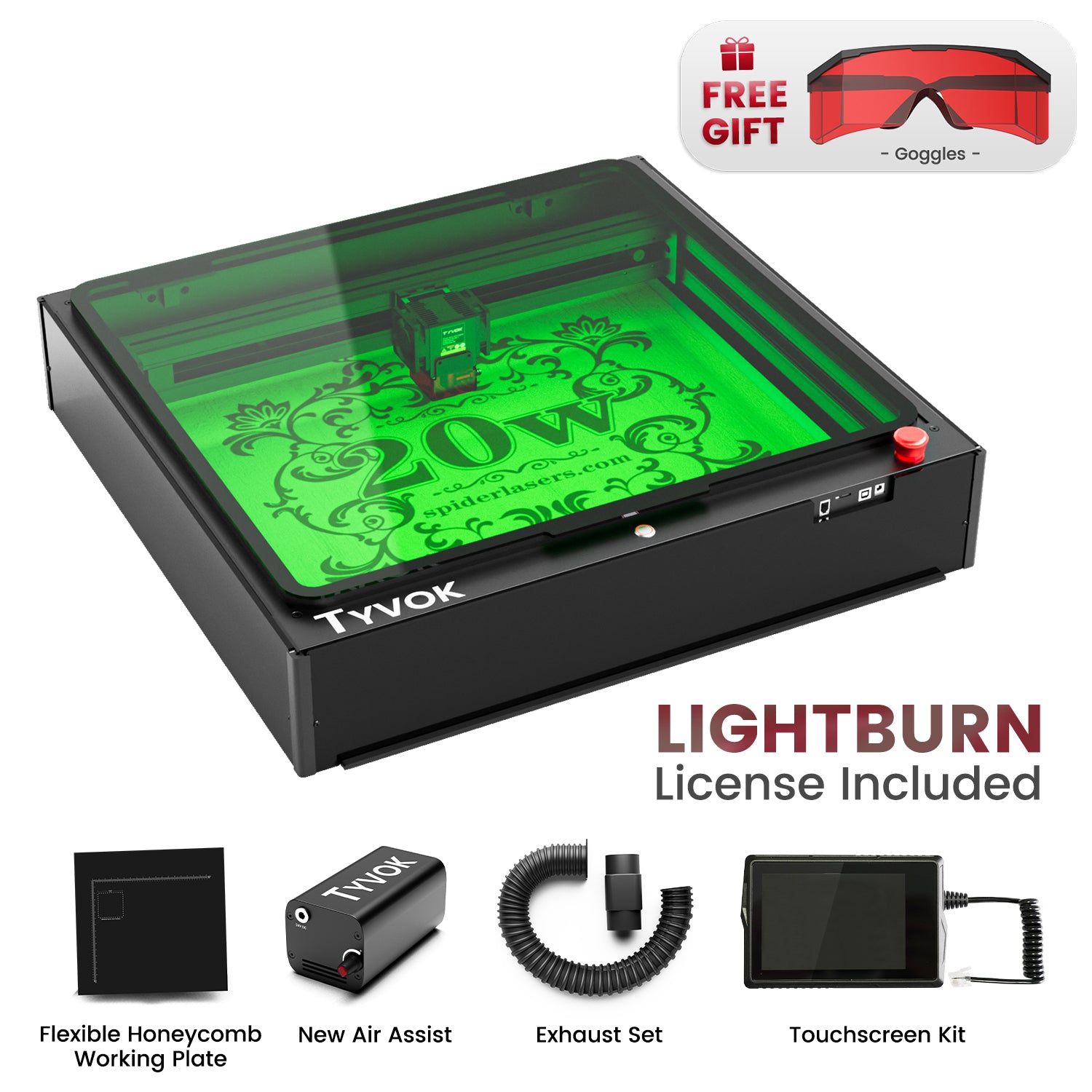

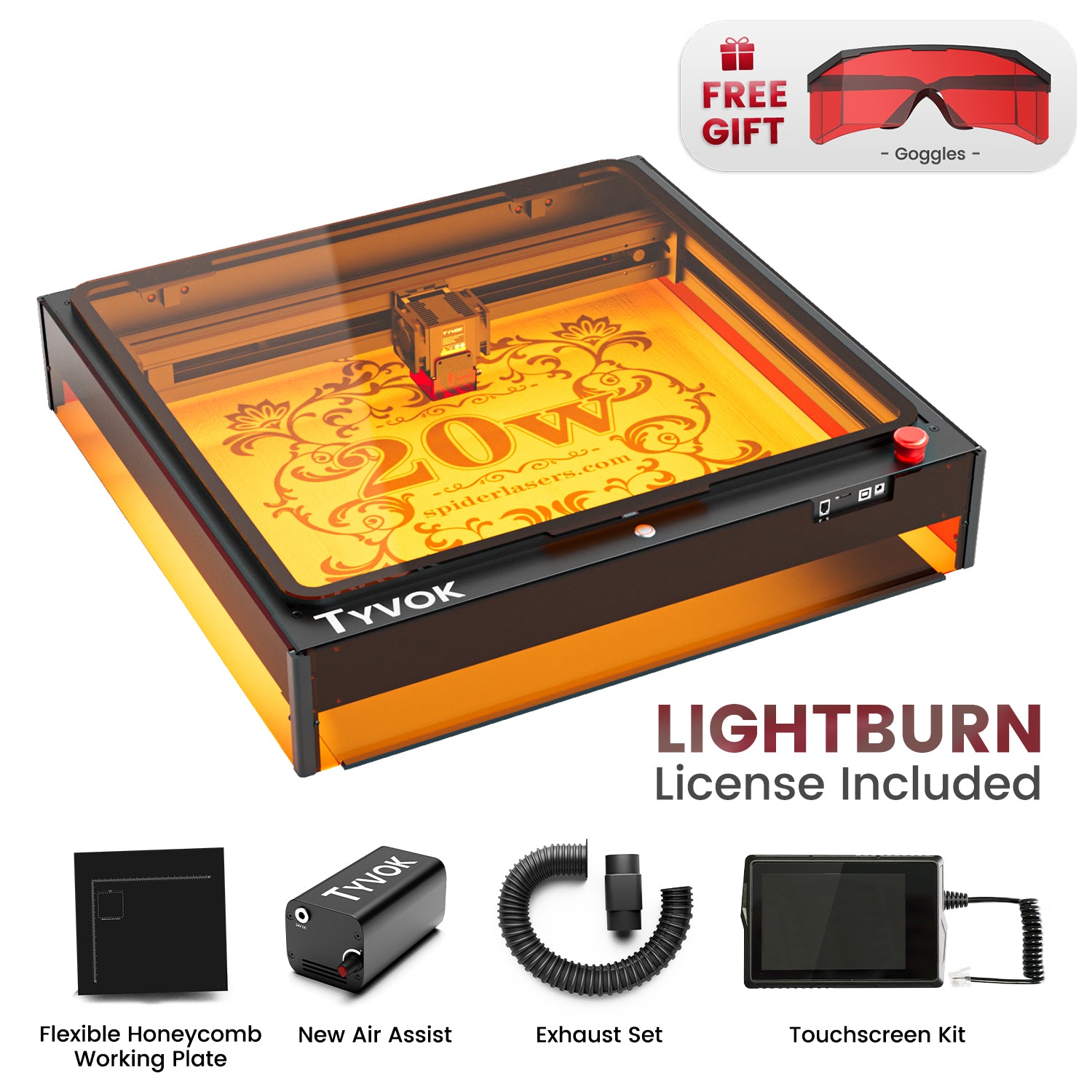

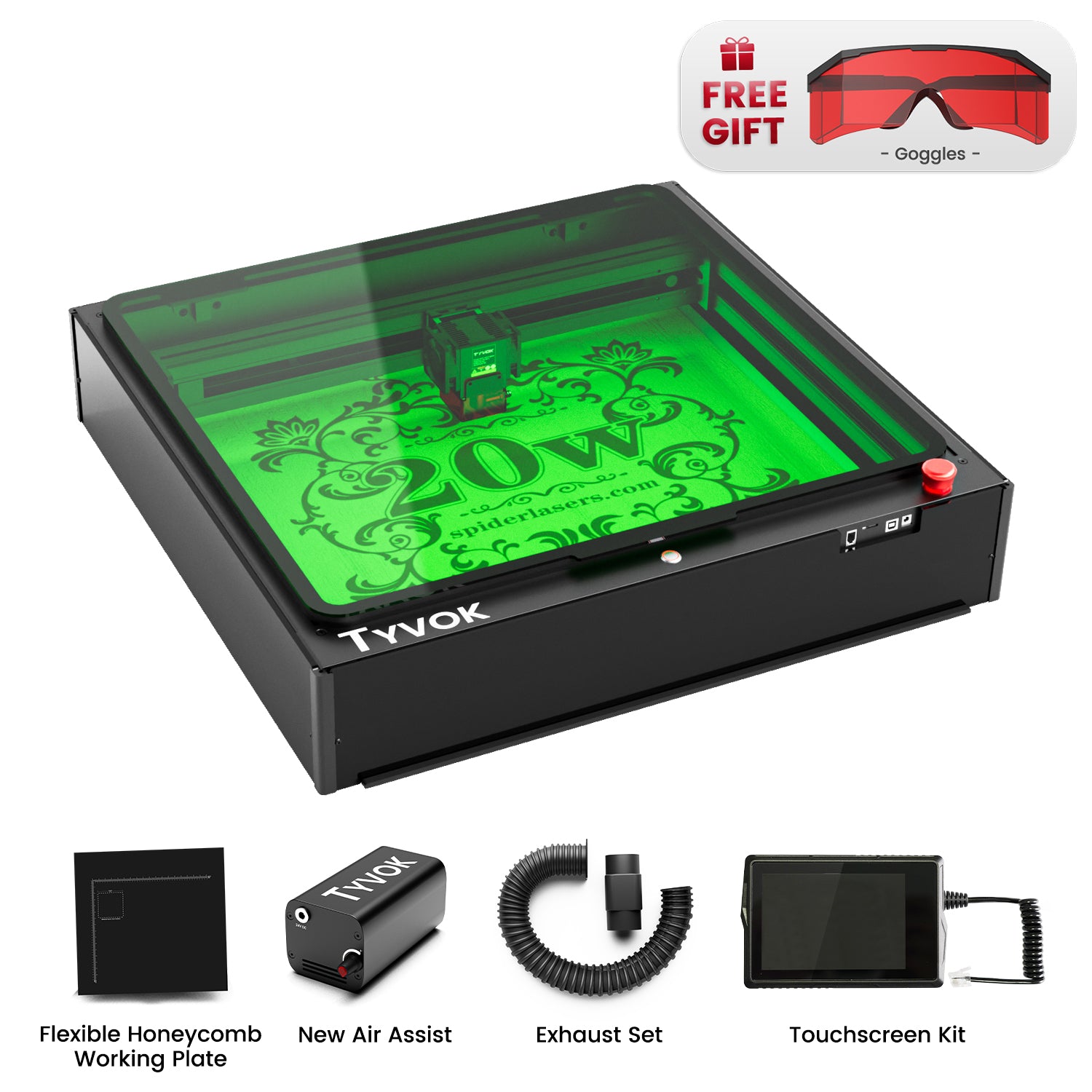

In order to enhance the user experience with the engraving machine, the X1C offers an optional external touchscreen configuration to meet user preferences. This touchscreen utilizes ESP32-WROOM-32U (8M Flash) technology and features a 3.5-inch capacitive screen with a resolution of 480*320. Users have the flexibility to choose language preferences and screen colors according to their liking. The touchscreen connects via a serial port, ensuring convenient and user-friendly operation.

Consistent Results

My experience with the X1C has been excellent. It’s easy to use, and the results are consistently impressive. The safety and convenience features make it a top choice.

Smooth Operation

The X1C operates smoothly and efficiently. Pre-installed features and a well-designed system make it easy to use and maintain. A great investment for my needs.

Practical & User-Friendly

I really appreciate the X1C’s design. It’s practical and user-friendly, with features that enhance usability and safety. The build quality is excellent.

Fantastic Machine

The X1C is a fantastic machine. The adjustable height is useful for various projects, and the design and functionality are spot-on. Very pleased with its performance.

Enclosed Design

The X1C’s enclosed design and safety features really set it apart. The machine is well-built, and the smoke extraction works effectively. A great addition to my workshop.
