Flexible Frame Configuration
Sold exclusively in the expansion configuration. Choose to install or omit the expansion structure to suit your workspace and project requirements.
🔥Tyvok X1S Pro Large-Format Laser Engraver
$1,199.00
$2,651.00
/
Save $1,452.00
X1S Pro on Sale – Limited Time, Incredible Price!
HOT
- One Machine, Two Configurations
- Integrated Y-Axis Drag Chain
- Optimized Y-Axis Drive
- Built-In Emergency Stop
- 20W / 60W Laser Options
ShopPay Powered by Stripe
Free Shipping on orders over $99
BUY NOW, Pay Later
Order processing within 7 business days
Friendly Customer Service
Buying for a school, studio, reseller, or bulk project?
Apply for TYVOK B2B review for catalog access, MOQ guidance, and freight quote support.
Apply for B2B review
$1,199.00
$2,651.00
/
Overview
Facebook group
Reviews
TYVOK X1S PRO / PRODUCT OVERVIEW

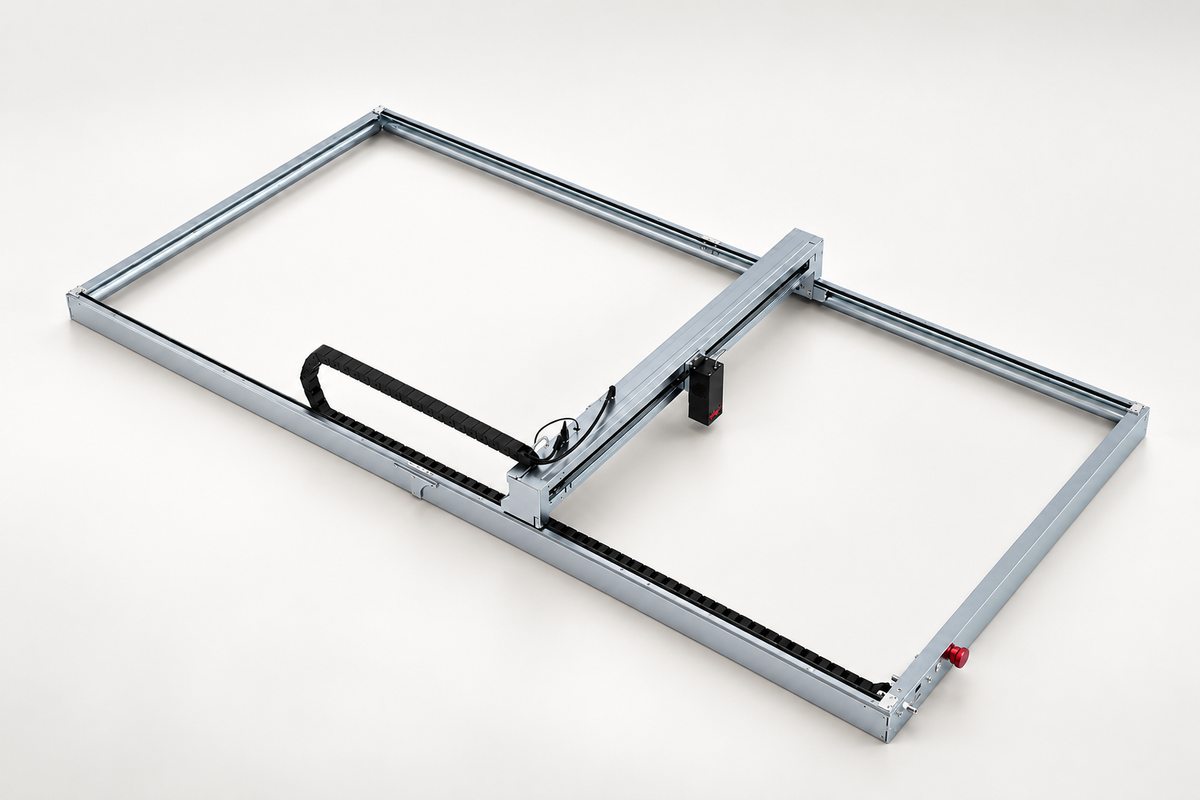

Tyvok X1S Pro Large-Format Laser Engraver
The Tyvok X1S Pro is a modular, large-format laser engraver featuring an expandable frame design and 20W or 60W blue diode laser options. Compatible with LightBurn and LaserGRBL, it is suitable for large-format engraving, material cutting, customization, and batch production.
Key Features
Large-Format Engraving
Offers a maximum effective engraving area of 780 × 1745 mm for oversized designs and long materials.
20W / 60W Laser Options
Select the laser power that best suits your material processing needs.
Software Compatibility
Supports LightBurn, LaserGRBL, and other compatible laser engraving software for design preparation, layout, and job control.

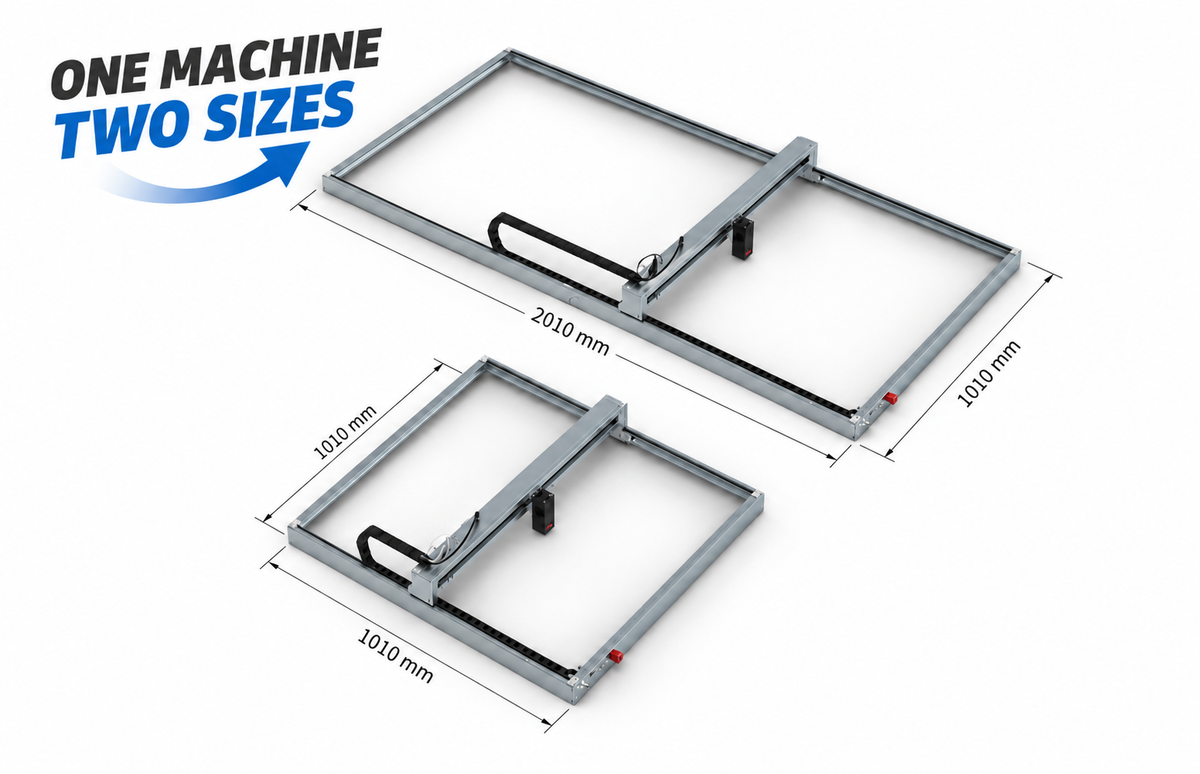

One Machine, Two Frame Configurations
The X1S Pro is supplied with the expansion configuration, allowing you to choose how to assemble the frame based on your needs.
Standard Frame Configuration: Ideal for smaller projects while helping conserve workspace.
Expanded Frame Configuration: Provides a larger working area for oversized designs and longer materials.
There is no need to purchase a separate standard-version machine. Simply configure the frame to suit your projects.
REFINED FOR 2026
Tyvok X1S Pro 2026 Version Updates
The 2026 version introduces improvements to cable management, the Y-axis drive system, safety, and operation modes, refining the machine's design and everyday usability.

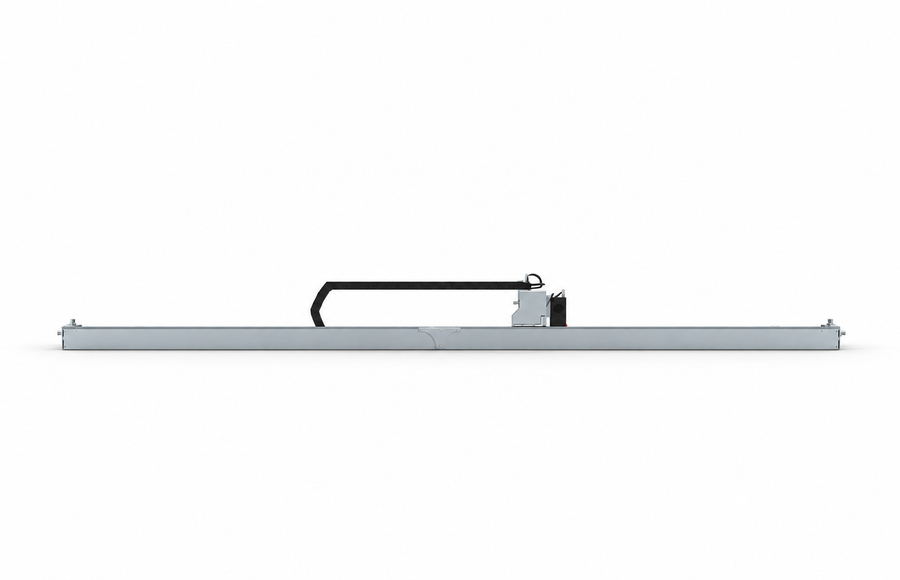

01. Improved Cable Management
New Y-Axis Drag Chain
A new Y-axis drag chain and repositioned cable connectors help route gantry cables neatly to the outer frame, reducing cable tangling and pulling and minimizing the risk of loose connections.

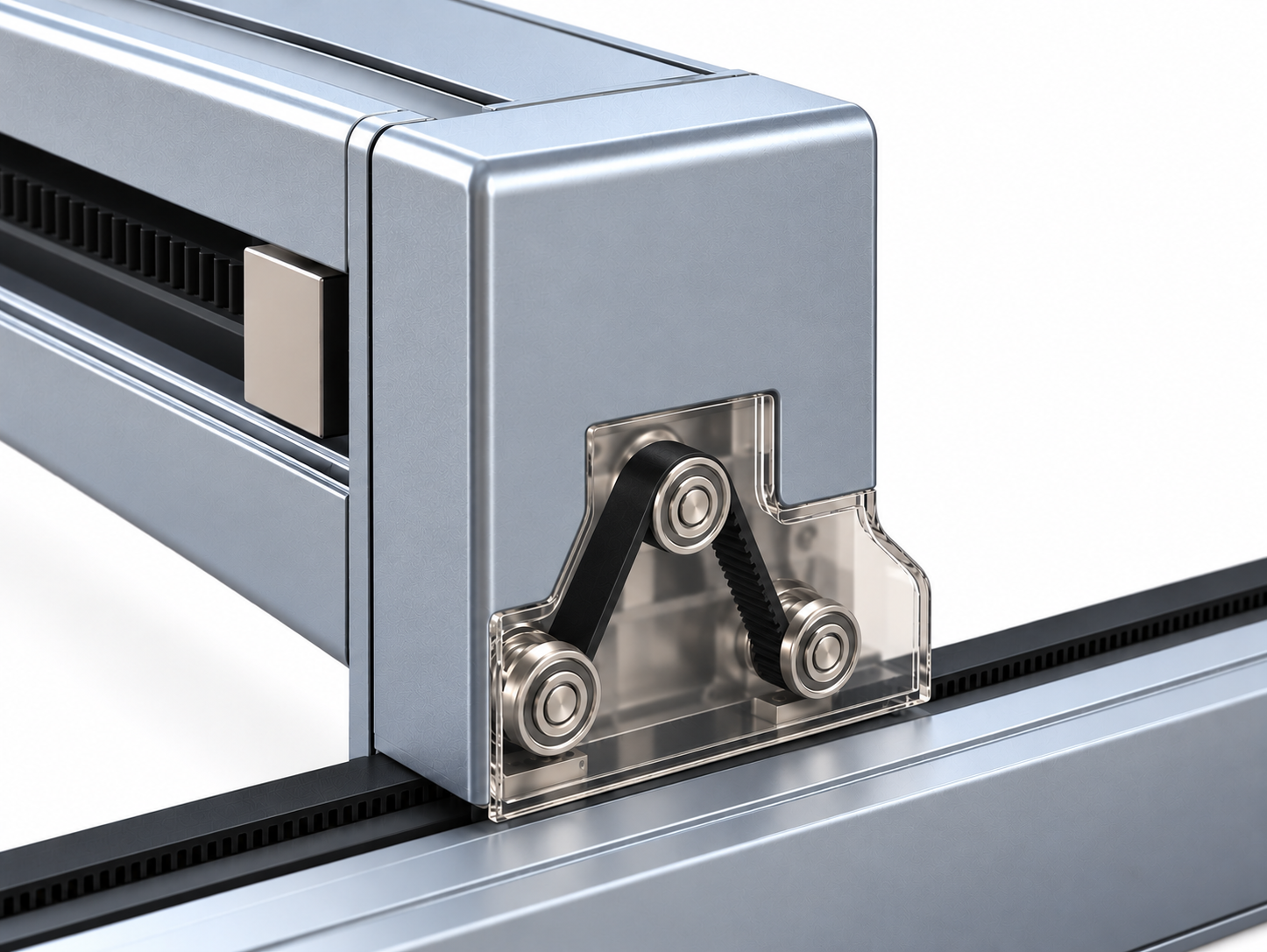

02. Optimized Y-Axis Drive System
Improved Engraving Accuracy
The optimized Y-axis drive mechanism is designed to improve engraving accuracy and overall machining performance.

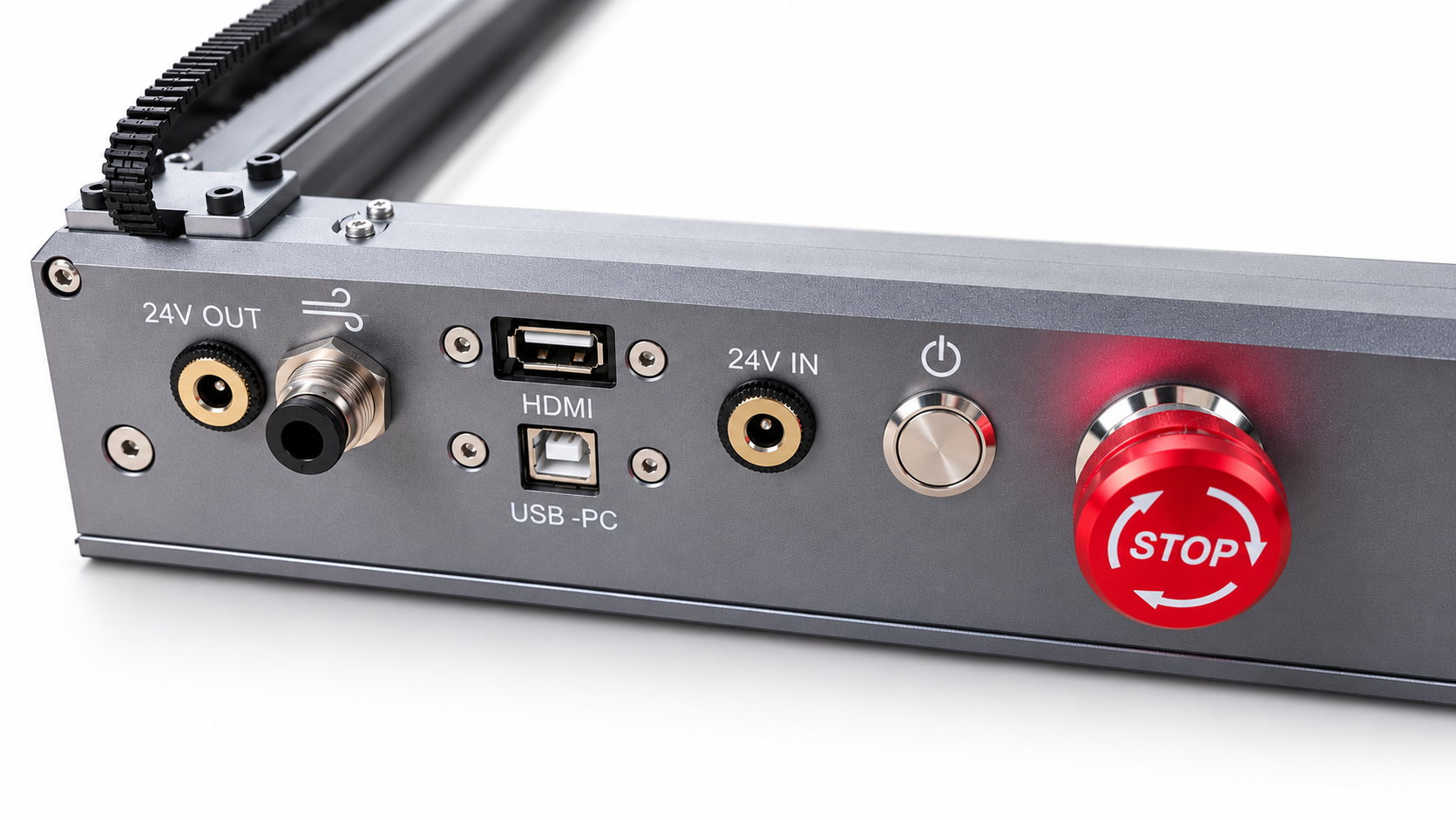

03. Enhanced Safety
New Emergency Stop Switch
A newly added emergency stop switch allows the machine's power to be cut off quickly in an emergency, providing an additional layer of operational safety.
04. Simplified Operation Modes
Frame Mode Only
The 2026 version removes the previous standalone machine mode and retains only frame mode, simplifying operation mode selection.
05. Multi-Machine Operation Update
Single-Machine Operation
The 2026 version no longer supports simultaneous operation of multiple machine units on the same frame. Please consider this change when planning your workflow.
X1S Pro - 2025
Earlier-generation footage. Refer to the 2026 version updates above for current operation modes.
Product walkthrough
Earlier-generation footage. Refer to the 2026 version updates above for current operation modes.
PROJECT INSPIRATION
Room for bigger ideas
Three ways to explore wood projects: statement pieces, repeat layouts and intricate decorative details.

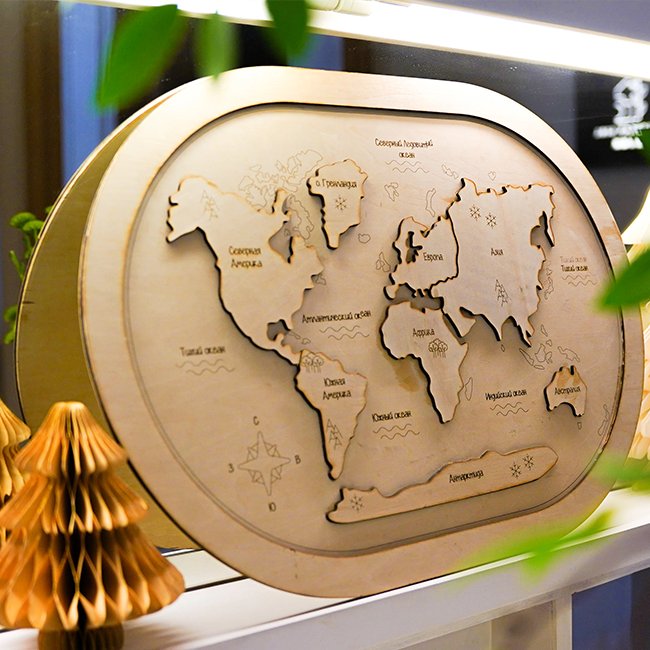

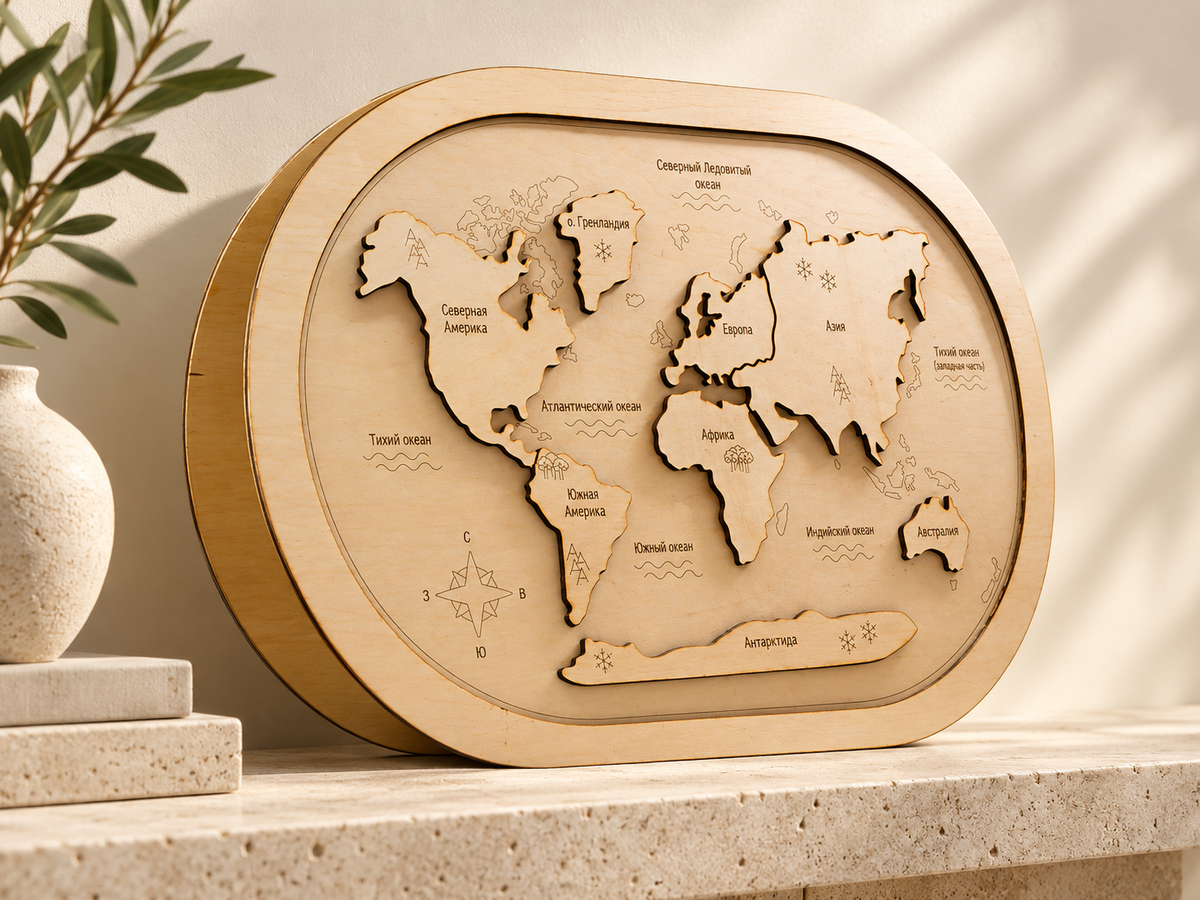

01 / LARGE-FORMAT PROJECTS
A statement piece for your space.
A layered wooden world-map design, presented as a focal point for a considered interior.

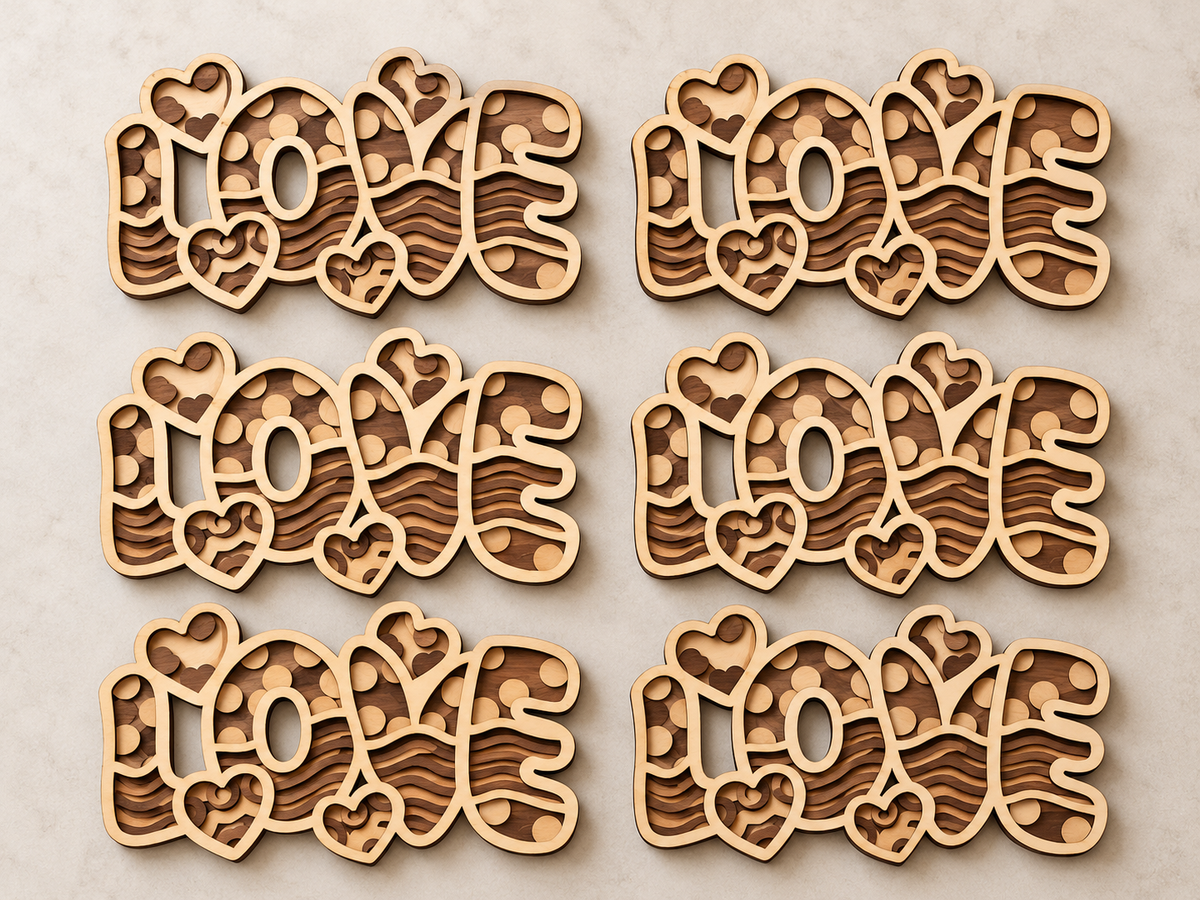

02 / BATCH LAYOUT
One design. More possibilities.
A repeat layout of layered LOVE signs, visualizing a coordinated gift collection.

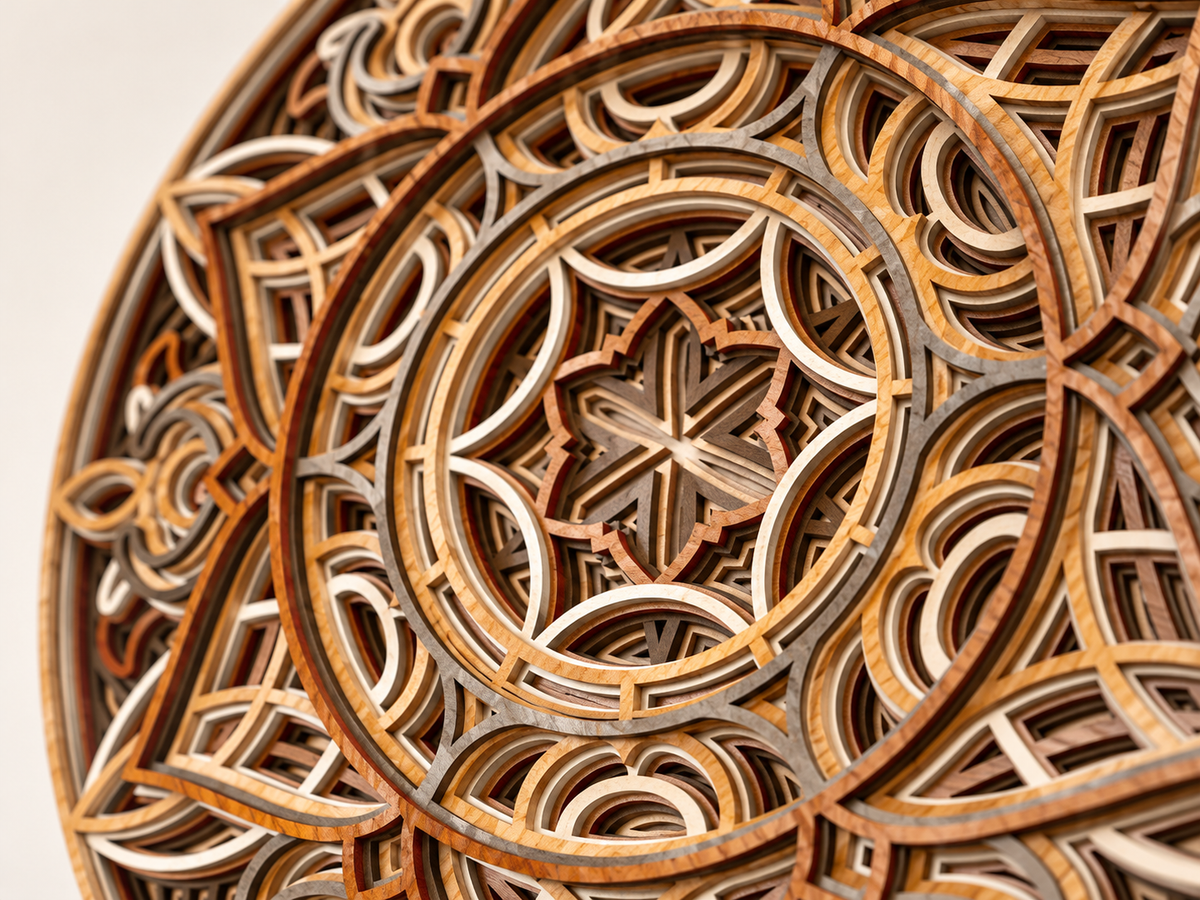

03 / DESIGN DETAILS
Look closer at the craft.
Layered edges, openwork and an interwoven geometric pattern, seen up close.
AI-assisted project visualizations based on existing showcase designs. Styling and batch layouts are illustrative.
View the original showcase images
Tyvok X1S Pro Product Showcase Series
8 videos
Project demonstration
Earlier-generation footage. Refer to the 2026 version updates above for current operation modes.
Earlier-generation feature reference
Dedicated Rotary Engraving Capability
The Spider X1S Pro supports dedicated rotary engraving, enabling simultaneous processing of multiple rotary items while conserving workspace. Adjustable height options provide adaptability for different dimensions and types of rotary items.
Earlier-generation feature reference
Stronger 60W Laser Power for Every Need
Tyvok Spider X1S Pro has a powerful 60W diode laser and is also compatible with 40W power levels to optimize for different engraving requirements. Whether you are dealing with complex designs or semi-industrial laser engraving tasks, Tyvok Spider X1S Pro offers superior performance and lower maintenance costs compared to CO2 laser heads, making it an affordable choice for all your engraving needs.
Compatible with LightBurn & LaserGRBL Software
Offers flexibility and ease of use for all engraving projects.
DETAILS & RESOURCES
Explore the complete reference.
Earlier-generation information is preserved below. For the 2026 version, the frame-only and single-machine updates above take precedence; current purchase options are 20W and 60W.
Earlier-generation specification table
Full specifications
| X1S Pro 20W | TYVOK X1S Pro 40W | TYVOK X1S Pro 60W | |
|---|---|---|---|
| Power of the Laser Module | 20W-22W | 40-42W | 60-62W |
| Machine Performance | 240w | 240w | 240w |
| LASER WAVELENGTH | 455±5nm | 455±5nm | 455±5nm |
| Laser Resource | Diode Laser | Diode Laser | Diode Laser |
| X-Axis Multi-Machine Support | Yes | Yes | Yes |
| Y-Axis Extendable | Yes | Yes | Yes |
| X-Axis Independent Engraving Mode | Yes | Yes | Yes |
| Rotary | Yes | Yes | Yes |
| Laser Point | 0.08*0.06mm | 0.08*0.06mm | 0.08*0.06mm |
| Maximum Speed | 24,800mm/min | 24,800mm/min | 24,800mm/min |
| Movement Speed | 6000mm/min | 6000mm/min | 6000mm/min |
| Support Air Assist Interface | ✔ | ✔ | ✔ |
| Support Software | Lightburn, LaserGRBL | Lightburn, LaserGRBL | Lightburn, LaserGRBL |
| Support Operation Mode | Mobile APP, TF Card, Web, Engrave software | Mobile APP, TF Card, Web, Engrave software | Mobile APP, TF Card, Web, Engrave software |
| Support WIFI | ✔ | ✔ | ✔ |
| Support Material | Cardboard, wood, Bamboo, rubber, acrylic, fabric, plastic, metal | Cardboard, wood, Bamboo, rubber, acrylic, fabric, plastic, metal | Cardboard, wood, Bamboo, rubber, acrylic, fabric, plastic, metal |
| Support File Formats | svg, png, jpg, bmp, dxf | svg, png, jpg, bmp, dxf | svg, png, jpg, bmp, dxf |
| Offline Work | ✔ | ✔ | ✔ |
| Input Voltage | 100-240V, 50-60HZ | 100-240V, 50-60HZ | 100-240V, 50-60HZ |
| Output Voltage | DC 24V, 10A | DC 24V, 10A | DC 24V, 10A |
Plan X1S Pro for larger repeatable production
X1S Pro is for larger work areas, batch layouts, stronger diode workflows, and shops that need more production room than a compact engraver.
Newest TYVOK material settings guides
Compare fresh TYVOK starter tests for P2 coated cards, leather keychains, P2 Ultra metal cards, brass and copper, X1S leather cutting, X1S Pro acrylic signs, and K1 Pro CO2 acrylic engraving.
Use TYVOK X1S Pro for repeat shop workflows
Production buyers should compare repeat layout, local signage, acrylic display, and large-format business paths before committing to a shop setup.
Earlier-generation FAQs
Original questions and answers are retained for reference. For the 2026 model, follow the version updates above, including frame-only operation, single-machine operation, and the currently listed 20W / 60W options.
What is the difference between the Tyvok Spider X1S and the X1S Pro?
The Tyvok Spider X1S Pro offers several advanced features: larger work area (800mm X-axis, adjustable Y-axis), multi-machine synchronization, compatibility with 20W, 40W, and 60W laser modules, and pre-assembled components for quicker setup.
How does the X1S Pro handle large-format engraving and cutting?
The X1S Pro offers an 800mm x 2000mm engraving and cutting area, perfect for large-scale projects like signage or furniture. The Y-axis extension allows for even larger materials to be processed, making it versatile for big designs.
Is the Tyvok Spider X1S Pro easy to assemble?
Yes, the Tyvok Spider X1S Pro comes pre-assembled with key components. You only need to follow the simple setup steps in the user manual to get started.
Does the Tyvok Spider X1S Pro support an external drag chain and touchscreen interface?
Yes, the Tyvok Spider X1S Pro includes an external drag chain to prevent cable tangling and a touchscreen interface for easy operation.
