Why Does a Small Filled Design Take Longer Than Its Size Suggests?
Quote from the software preview and an observed validation run, because a small filled design can require substantial non-marking travel.
Define the failure before changing anything
Current LightBurn production training explains that layout and travel outside visible artwork can materially change engraving time.
The useful method here is preview audit separating visible mark area, scan travel, acceleration, non-output motion, object orientation, and job grouping before quoting time.
Build a controlled comparison
| Quote input | Orientation A | Orientation B | Use |
|---|---|---|---|
| Visible design | 80 × 20 mm | 20 × 80 mm | Same artwork |
| Software preview | 6:40 | 4:55 | Includes scan/travel model |
| Validation sample | 7:05 | 5:18 | Observed supervised time |
| Handling/QC | 2:00 | 2:00 | Add outside machine preview |
Make one safe change at a time
- Preview both orientations without changing the visible design.
- Confirm fixture and travel clearance for each orientation.
- Run one eligible validation sample and time handling separately.
- Quote from the accepted observed total plus the shop's risk allowance.

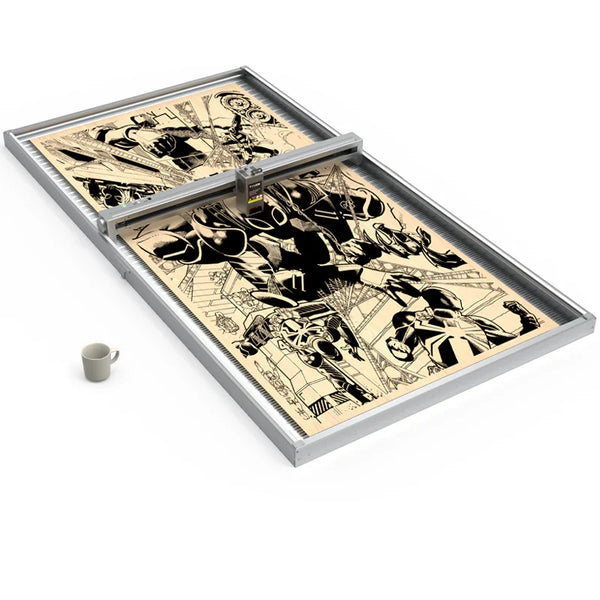

TYVOK X1S Pro facts for visible artwork dimensions
X1S Pro production planning benefits from software preview, while an observed validation run still owns the quote; see the current TYVOK X1S Pro configuration.
References for previewed scan and travel time
- Budget optional LightBurn software
- Compare six-piece outsourcing with ownership
Buyer questions about visible artwork dimensions
Why can a small design take longer?
Filled scanning can extend beyond visible pixels for acceleration and reversal, so visible area alone is not a time estimate.
Does rotation always make it faster?
No. Rotation can help or hurt depending on scan direction, geometry, travel, and fixture clearance; compare previews.
Which time belongs in a customer quote?
Include accepted validation time, loading, proofing, cleaning, inspection, and exception allowance—not preview time alone.
