Overview

Facebook group

Reviews

BUY NOW,PAY LATER

Buy a Tyvok laser engraver now and enjoy flexible installment options for easy payments and a high-quality engraving experience!

x1sshow9.png__PID:82d85790-5bd6-46a7-9a05-6861ed69e12c

Tyvok X1S Pro Product Showcase Series

Multi-Machine Efficiency with Shared Y-Axis

Multiple Tyvok Spider X1S Pro units can operate simultaneously on a shared Y-axis track, drastically boosting productivity. This setup is ideal for batch production, allowing synchronized or independent tasks across multiple machines.

Spider X1S Pro Roller Mode

The Tyvok Spider X1S Pro's Roller Mode allows the machine to engrave on a flat surface alone, without relying on a fixed frame, providing enhanced flexibility and precision for a variety of materials. This innovative feature simplifies setup and expands creative possibilities.

Unlimited Expandable Y-Axis Framework

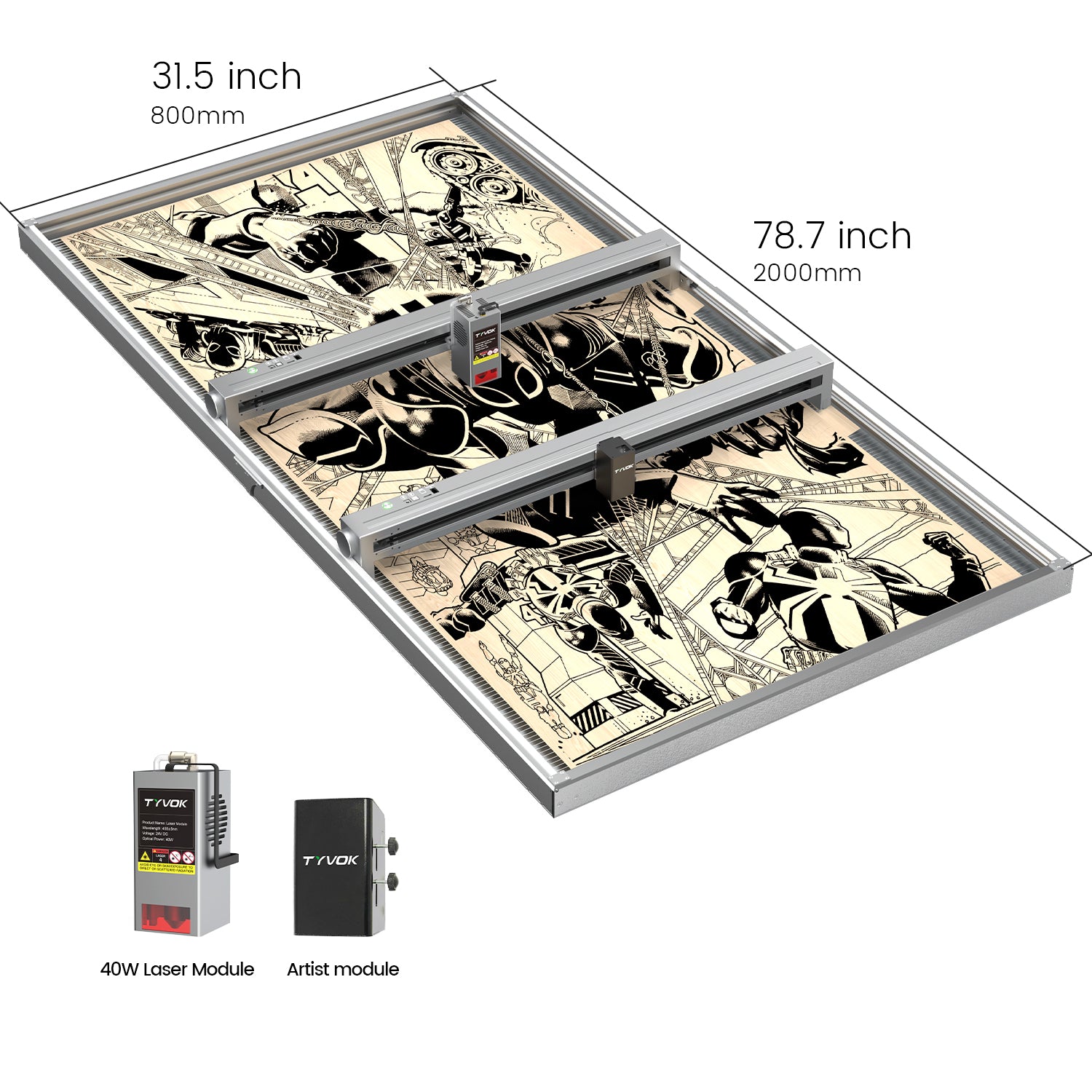

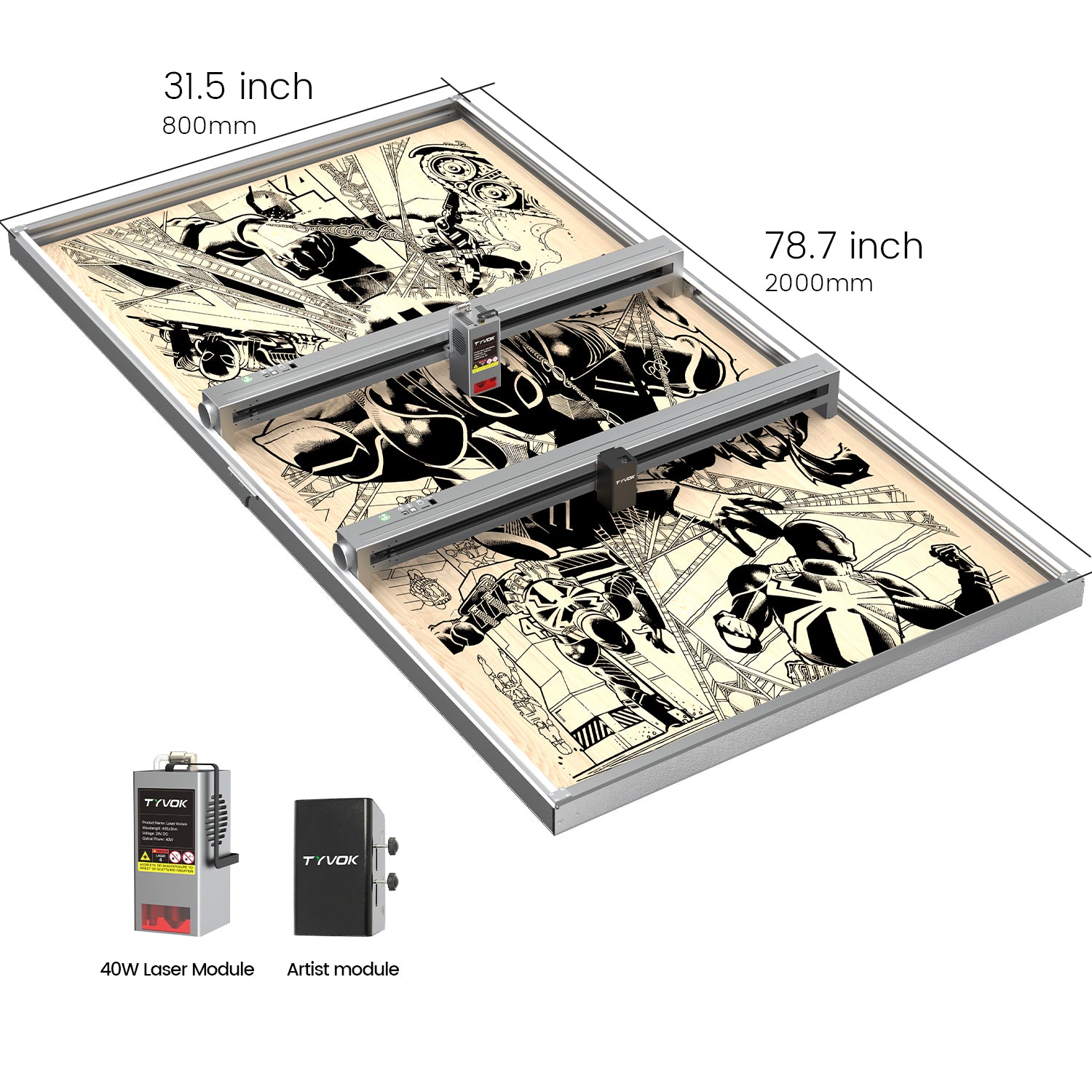

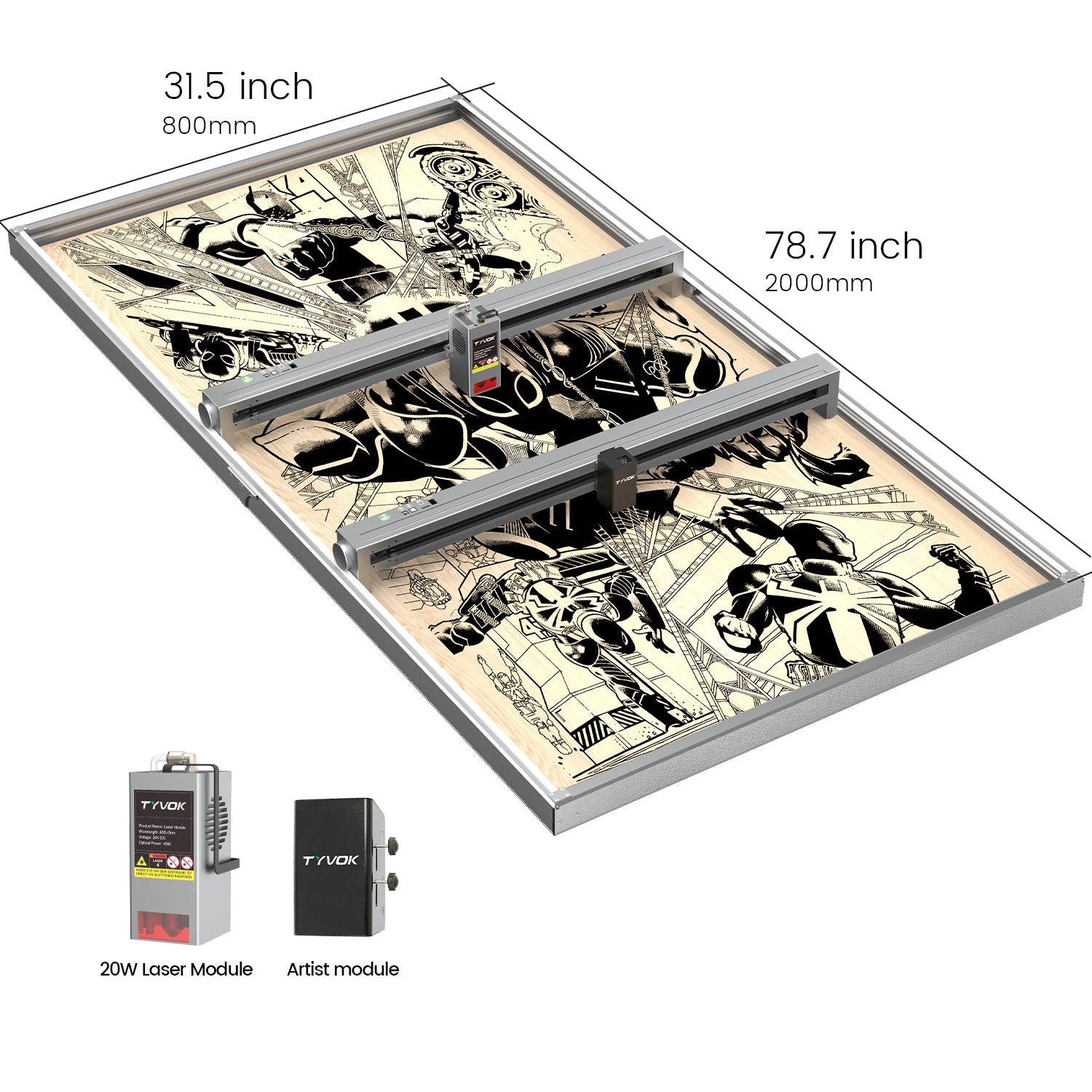

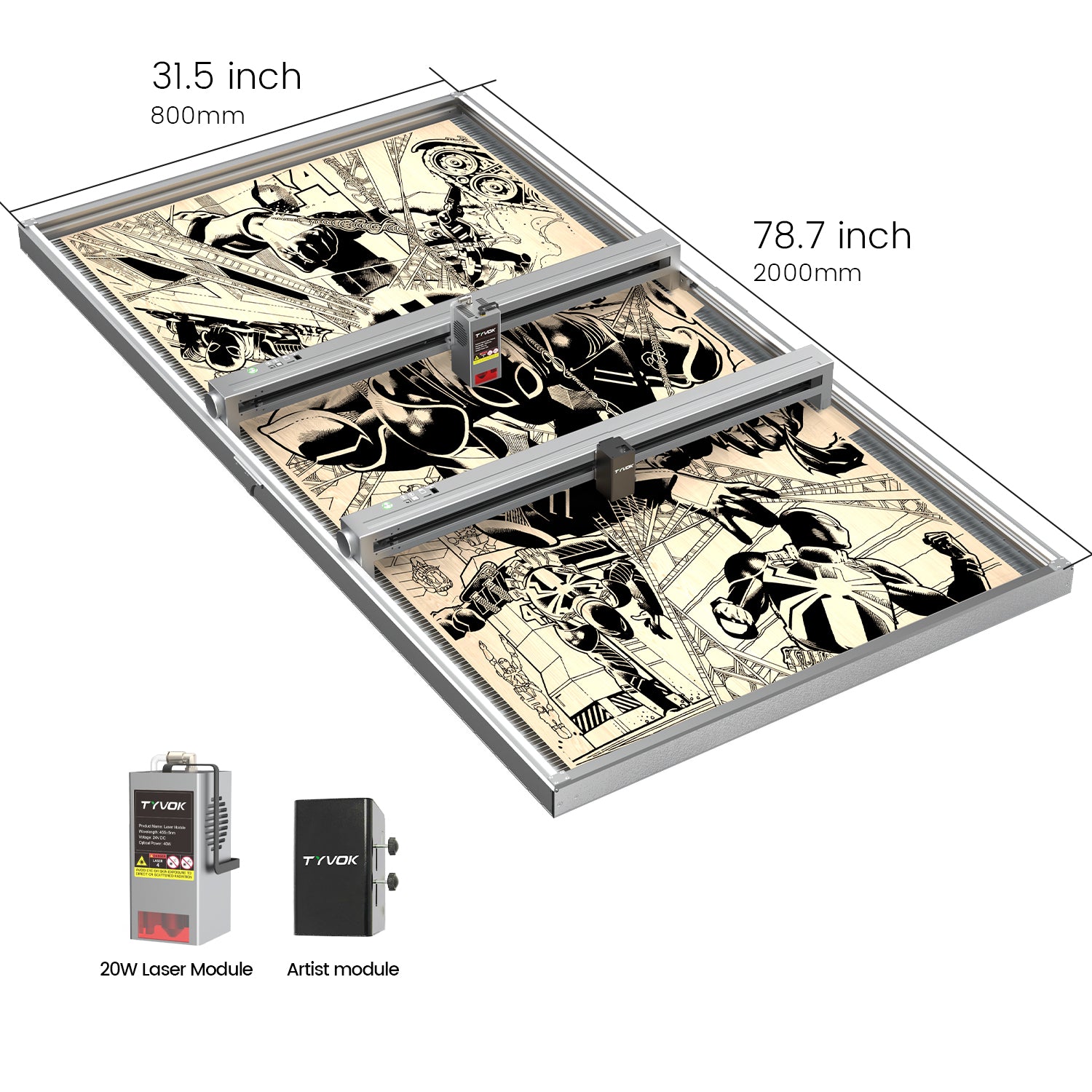

Featuring a modular Y-axis framework, the Spider X1S Pro supports sizes from 800*2000mm to virtually limitless extensions. This design ensures high precision and stability, perfect for large-format and high-volume production.

Dedicated Rotary Engraving Capability

The Spider X1S Pro supports dedicated rotary engraving, enabling simultaneous processing of multiple rotary items while conserving workspace. Adjustable height options provide adaptability for different dimensions and types of rotary items.

Stronger 60W Laser Power for Every Need

Tyvok Spider X1S Pro has a powerful 60W diode laser and is also compatible with 40W power levels to optimize for different engraving requirements. Whether you are dealing with complex designs or semi-industrial laser engraving tasks, Tyvok Spider X1S Pro offers superior performance and lower maintenance costs compared to CO2 laser heads, making it an affordable choice for all your engraving needs.

Compatible with LightBurn & LaserGRBL Software

Offers flexibility and ease of use for all engraving projects.

	X1S Pro 20W	TYVOK X1S Pro 40W	TYVOK X1S Pro 60W
Power of the Laser Module	20W-22W	40-42W	60-62W
Machine Performance	240w	240w	240w
LASER WAVELENGTH	455±5nm	455±5nm	455±5nm
Laser Resource	Diode Laser	Diode Laser	Diode Laser
X-Axis Multi-Machine Support	Yes	Yes	Yes
Y-Axis Extendable	Yes	Yes	Yes
X-Axis Independent Engraving Mode	Yes	Yes	Yes
Rotary	Yes	Yes	Yes
Laser Point	0.08*0.06mm	0.08*0.06mm	0.08*0.06mm
Maximum Speed	24,800mm/min	24,800mm/min	24,800mm/min
Movement Speed	6000mm/min	6000mm/min	6000mm/min
Support Air Assist Interface	✔	✔	✔
Support Software	Lightburn, LaserGRBL	Lightburn, LaserGRBL	Lightburn, LaserGRBL
Support Operation Mode	Mobile APP, TF Card, Web, Engrave software	Mobile APP, TF Card, Web, Engrave software	Mobile APP, TF Card, Web, Engrave software
Support WIFI	✔	✔	✔
Support Material	Cardboard, wood, Bamboo, rubber, acrylic, fabric, plastic, metal	Cardboard, wood, Bamboo, rubber, acrylic, fabric, plastic, metal	Cardboard, wood, Bamboo, rubber, acrylic, fabric, plastic, metal
Support File Formats	svg, png, jpg, bmp, dxf	svg, png, jpg, bmp, dxf	svg, png, jpg, bmp, dxf
Offline Work	✔	✔	✔
Input Voltage	100-240V, 50-60HZ	100-240V, 50-60HZ	100-240V, 50-60HZ
Output Voltage	DC 24V, 10A	DC 24V, 10A	DC 24V, 10A

What is the difference between the Tyvok Spider X1S and the X1S Pro?

The Tyvok Spider X1S Pro offers several advanced features: larger work area (800mm X-axis, adjustable Y-axis), multi-machine synchronization, compatibility with 20W, 40W, and 60W laser modules, and pre-assembled components for quicker setup.

How does the X1S Pro handle large-format engraving and cutting?

The X1S Pro offers an 800mm x 2000mm engraving and cutting area, perfect for large-scale projects like signage or furniture. The Y-axis extension allows for even larger materials to be processed, making it versatile for big designs.

Can I use the Tyvok Spider X1S Pro for cylindrical engraving?

Yes, the Tyvok Spider X1S Pro is designed for cylindrical engraving and can handle large batch engraving with its 800mm wide platform and adjustable height features for cylindrical objects like baseball bats,mugs and bottles.

How do I set up multi-machine synchronization?

To set up multi-machine synchronization, ensure both machines are connected to the same network, enable multi-machine operation in the LightBurn software, and control multiple machines from a single interface.

Is the Tyvok Spider X1S Pro easy to assemble?

Yes, the Tyvok Spider X1S Pro comes pre-assembled with key components. You only need to follow the simple setup steps in the user manual to get started.

Does the Tyvok Spider X1S Pro support an external drag chain and touchscreen interface?

Yes, the Tyvok Spider X1S Pro includes an external drag chain to prevent cable tangling and a touchscreen interface for easy operation.

Best large format laser cutter for consumer

I am in love with both my kickstarter and now my new X1S Pro.
The craftsmanship and quietness is priceless.

I am truly enjoying my lassr cutter

Easy to Use with Fantastic Results

I was nervous about using a laser engraver, but the X1S Pro made it easy. The instructions are clear, and the results are fantastic.

Fun Bonding Time with Family Projects

Using the X1S Pro has become a bonding activity with my son. Together, weve created some incredible projects!

Essential for Bowl and Vase Details

I use the X1S Pro to add intricate patterns to my woodturned bowls and vases. Its an essential tool in my workshop.

Saves Time on Model Parts Engraving

The X1S Pro is fantastic for cutting intricate parts for my models. It's reliable and saves me so much time.
